Description:

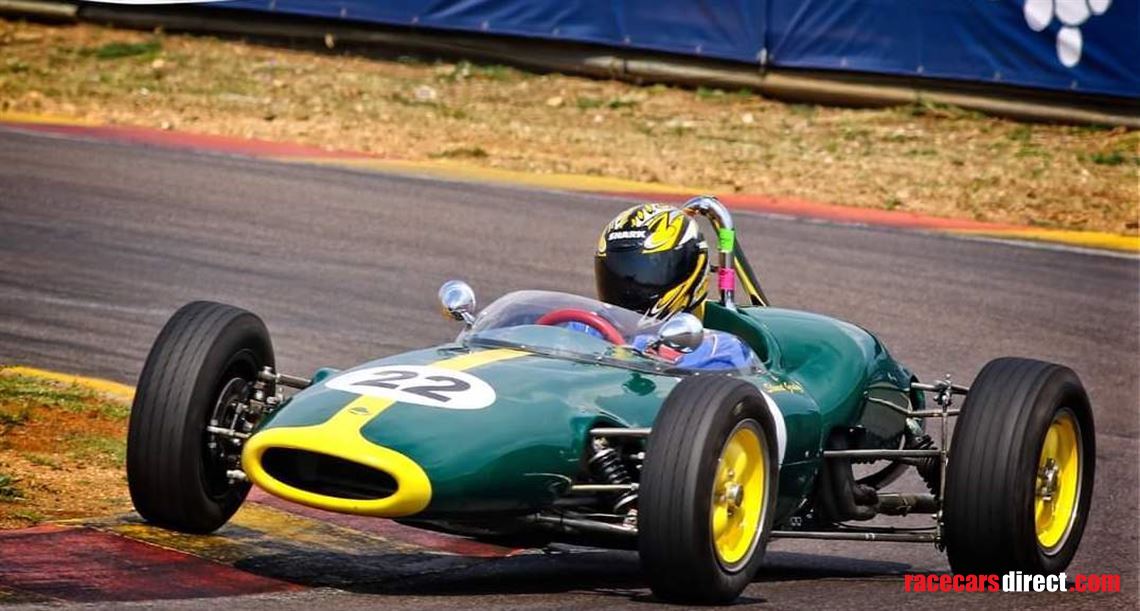

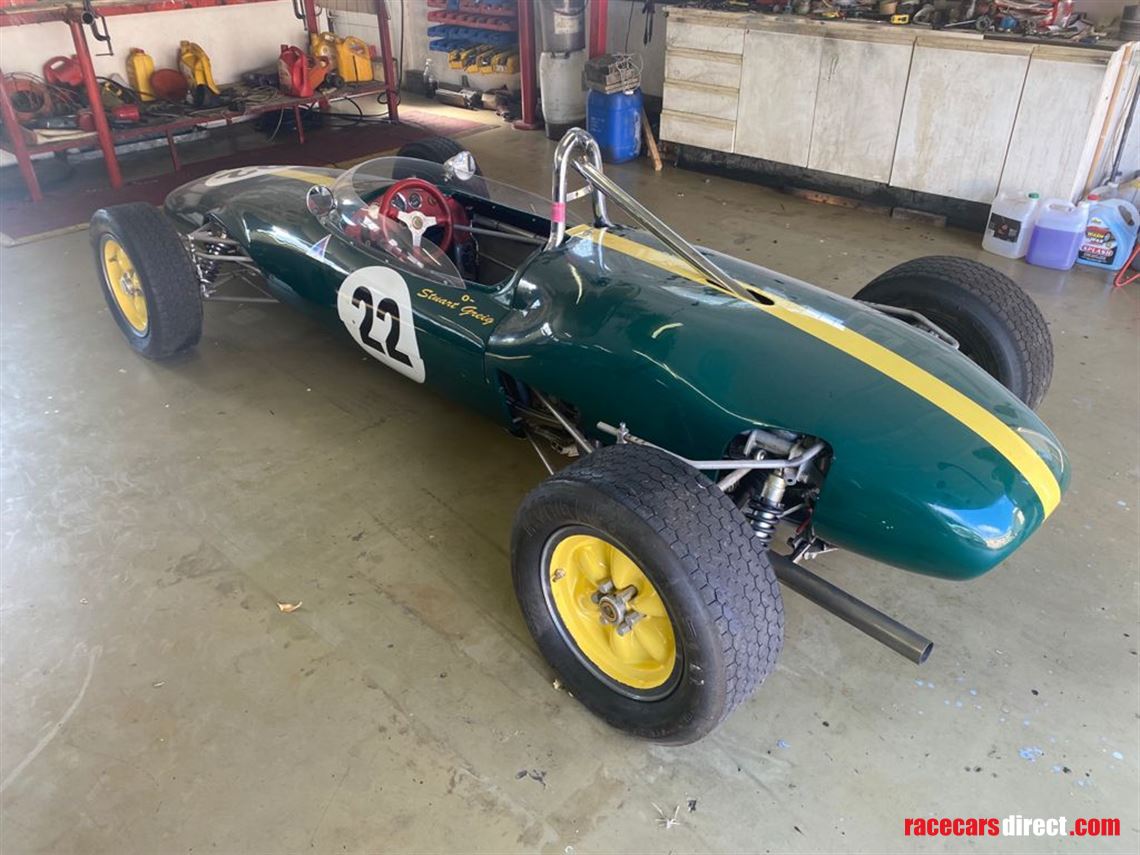

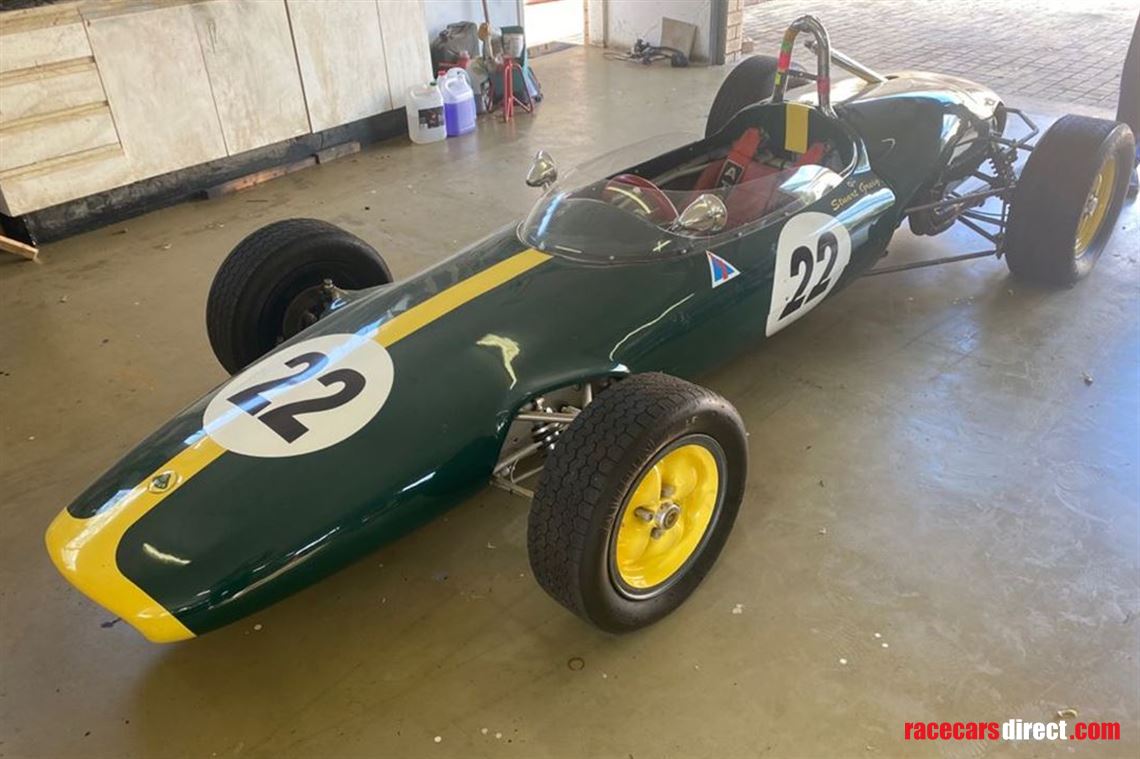

A great build by a retired race engineer in S.A

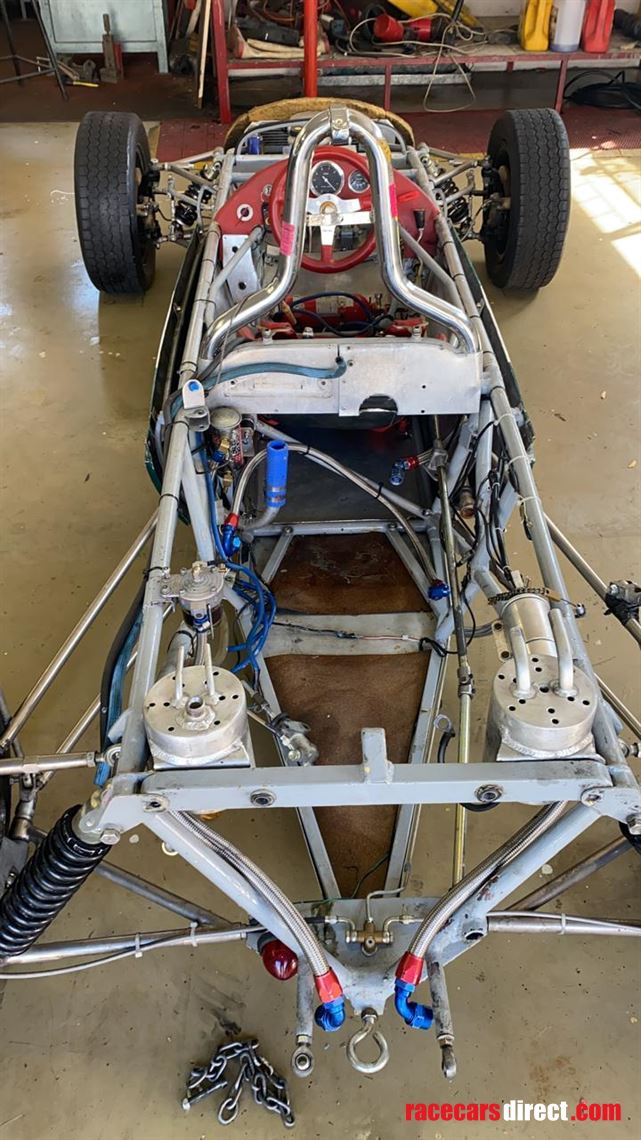

All dimensions correct as per original, taken over a number of months and checked throughout the build process. The Ron Liddiard car - chassis and body were used here.

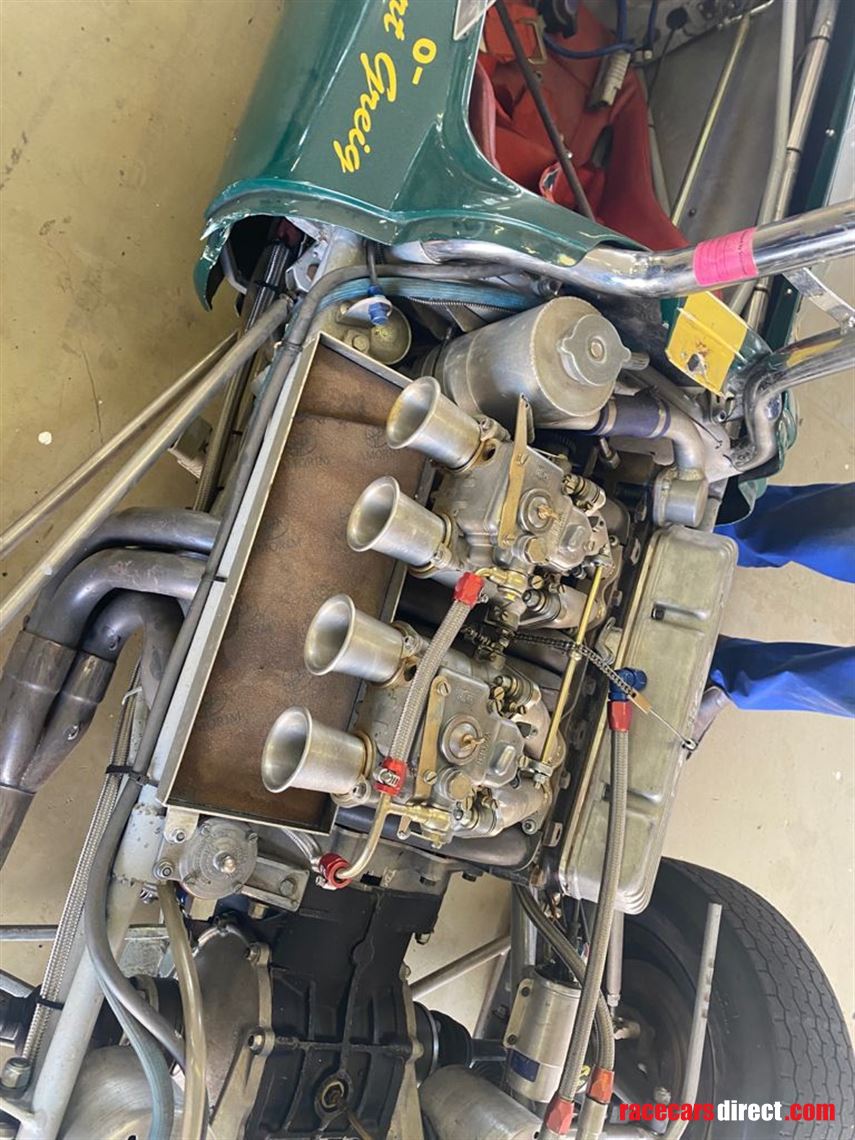

Ford 120e dry sump( not109) bored to 1628cc 80.1 bore 99mm Stroke. Bosch electronic ignition. Twin 40 GCOE Weber carburettors.

L18 crank bda rods and 81mm 20 valve toyota pistons.

Hewland mk IV 5 speed gearbox golf cv joints.

Gear ratios:



1st 14/36 2.58

2nd 19/32 169

3rd 22/29 1.32

4th 24/27 1.13

5th 25/25 1.11

diff ratio 33/8 4.13
