MAGNUM single seater project

Description:

Magnum Single Seater Project - £2750

Magnum Race Cars in Northampton, founded by John Robinson, built race cars in the 1980s. They produced a few Sports 2000s & some F3s (remembered best for once out qualifying Senna & Brundle with David Leslie). The company evolved into a specialised supplier to Formula 1 teams. At some point c.1990 they appear to have been commissioned to build a batch of single seaters for a single chassis race series in the Caribbean. You can see them racing in Jamaica in 1995 on YouTube. https://www.youtube.com/watch?v=NhPiLaokFXI&t=231s
The cars were spaceframed, pushrod suspended, powered by dry sumped Golf GTi 8v engines & using Hewland LD gearboxes. Constructed to a high standard, using a simple robust design,
they shared various components like uprights etc with the earlier F3s

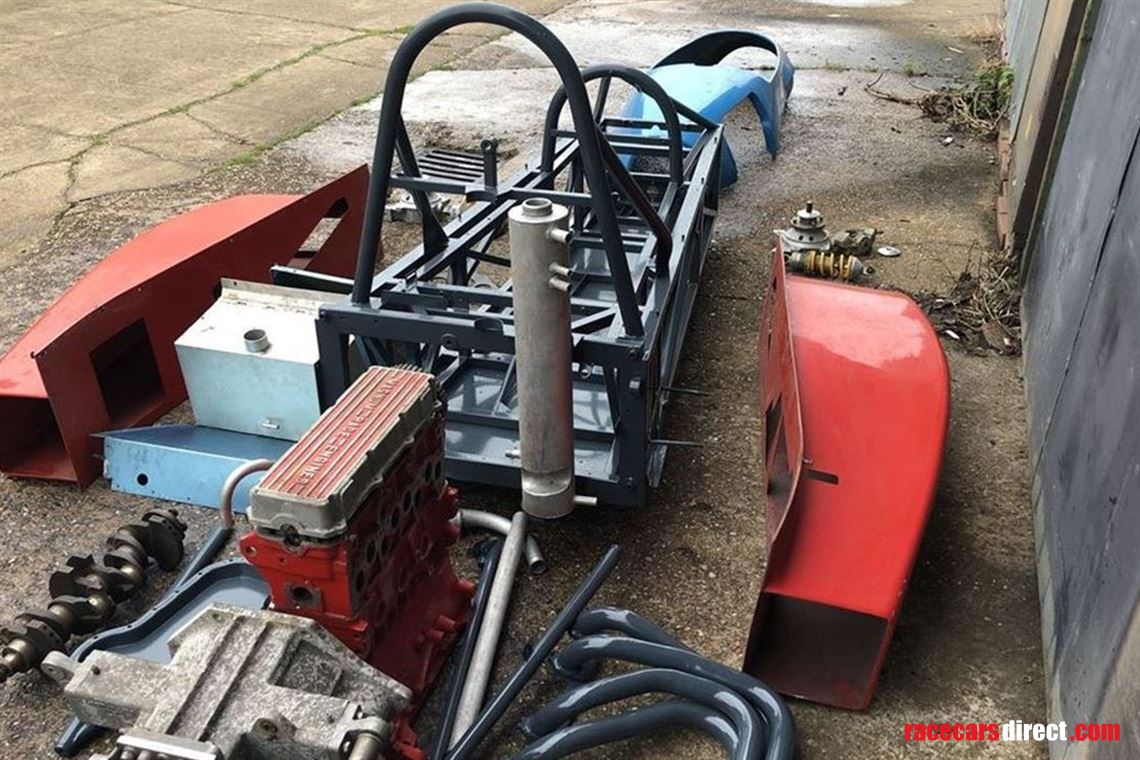

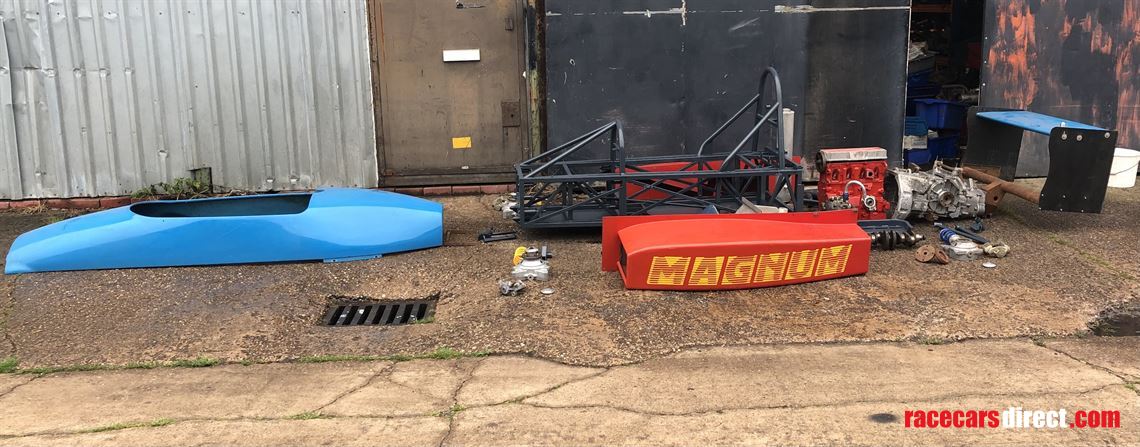

I have acquired a big heap of unused components from these cars including sufficient to make it possible for an adventurous individual to build up a car - either similar to the original specification or using it as a basis for something of their own conception

One possible package would comprise:

----------------------------------

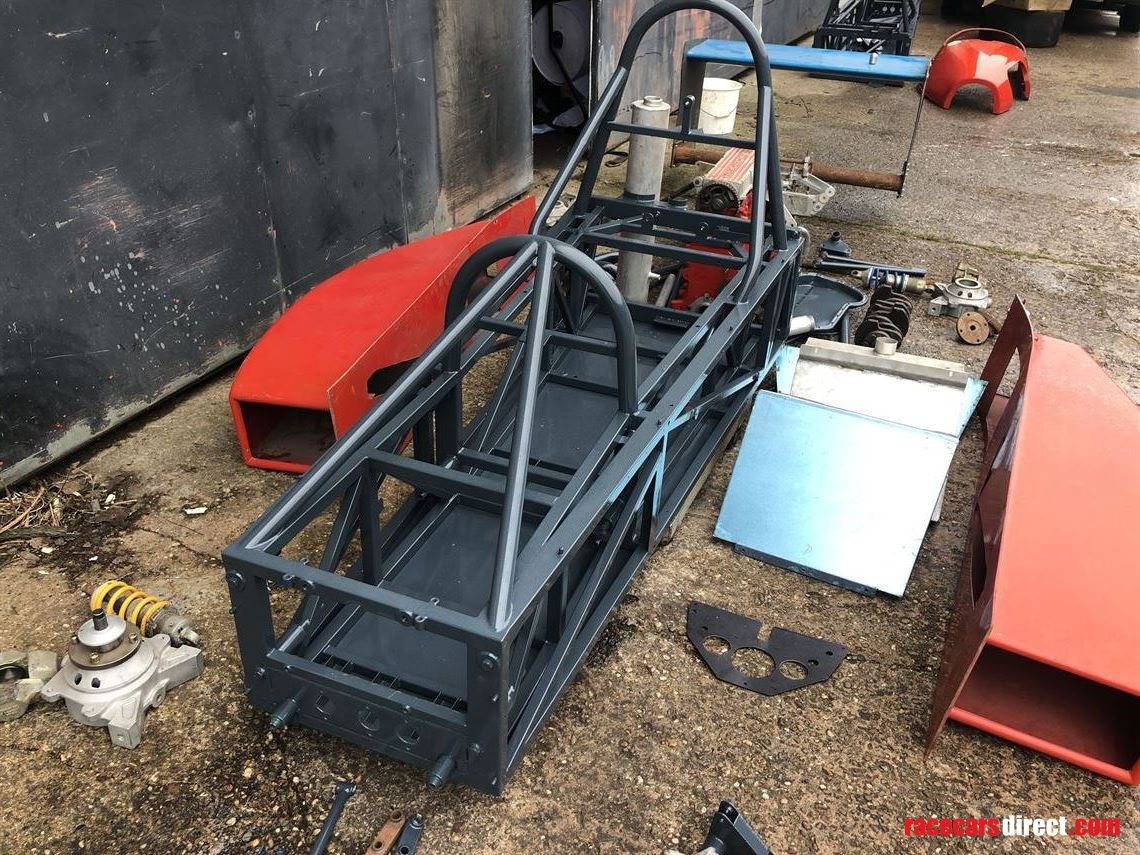

Powdercoated spaceframe chassis with integral steel floor
pair engine A frames
oil tank
fuel tank
coolant header tank
alloy water pipes
cockpit bulkhead alloy panels
bare dashboard panel
gear linkage & gear lever
steering column with QR spigot
master cyls
pedal set
throttle cable
Steering rack + clevises + track rods
Front uprights - built up with centrelock pin, hub, bearings & wheel flange collars
F&R rockers
F&R rocker mounts
F&R anti roll bars
rear cast alloy suspension carrier
F&R adjustable coil over spring damper units
front sheer plates & mounts
bare alloy upright castings - that MAY be usable for rear
rear wheel bearing cores/flanges
pair driveshafts
pair correct upper rear wishbones
F&R set of wishbones (which will require modification to be used)
F&R AP LD20 brake calipers
F&R brake discs

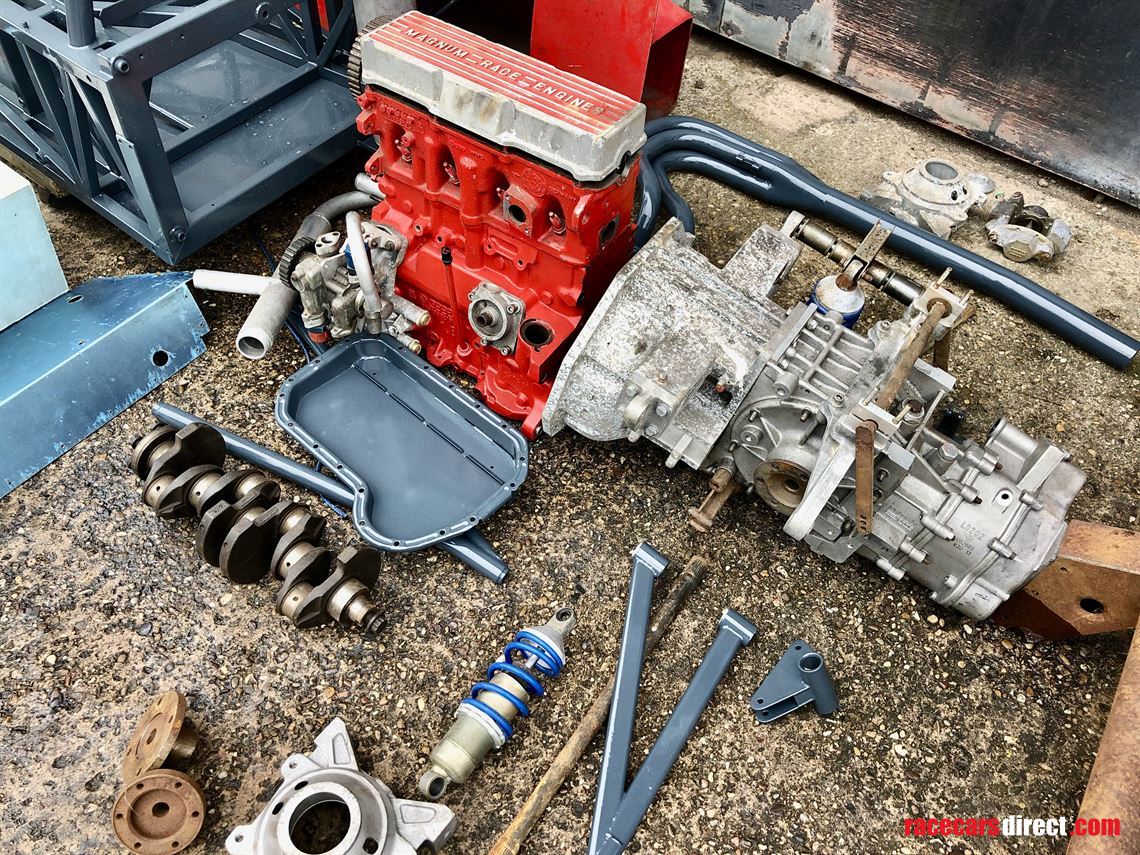

VW GTi 8v engine block/pistons/crank
VW GTi 8v head + camshaft - less valves
Magnum Race Engines cast alloy rocker cover
Titan 2 stage dry sump pump
Dry sump pan
Cast alloy adaptor/bellhousing
Exhaust system
Radiator + mounting
Hewland LD200 complete set of gearbox castings - No internals- castings may have damage
Cast alloy upper suspension carrier
Cast alloy lower suspension carrier
Rear wing & crosstube
Pair sidepods
Top body section

£2750.00

--------------------------------------

Contact directly please - not via site message system

07703 162409
