Xtrac P1529 - Brand New - SOLD
This is now SOLD. Search for similar items.
Description:

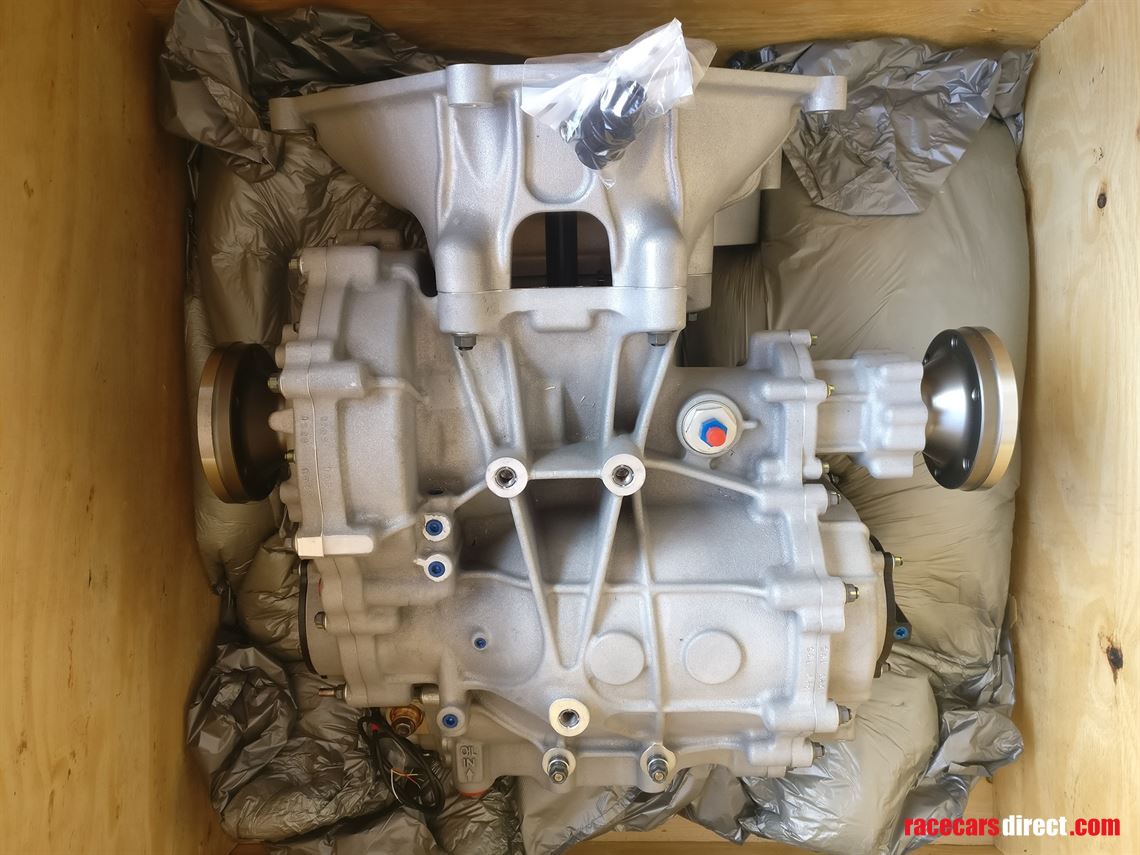

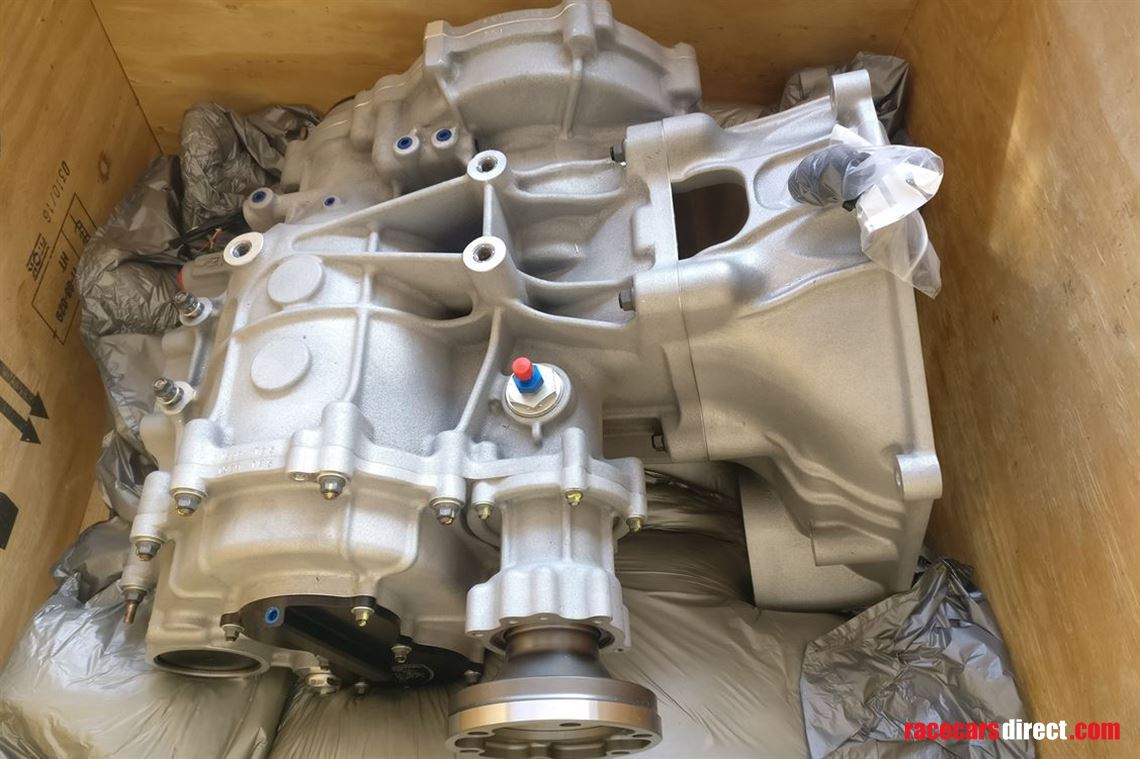

Brand new Xtrac P1529 gearbox, still in it's original packaging and crate.
These are the flagship, top of the range transverse Xtrac units designed primarily for GT3 and GTE cars, as used in numerous current GT cars such as the Ferarri 488 GTE, Honda NSX GT3, McLaren 650S GT3 and the Lamborghini Huracan Super Trofeo.
The exceptionally compact, transverse design and light weight combine with an 800nm torque capacity, externally adjustable plate diff and unrivalled service intervals to mark this as one of the best GT transmissions on the market. It is fully compabitle with Xtrac's IVA gearchange system (available separately from Pit Lane Spares) as well as other leading shift systems.
This particular gearbox is built to Huracan ST spec with aluminium L169 casing set and a bolt-on Huracan ST bellhousing included.
The gearbox is fitted with the following ratios.
Bevels: 21:23
Final Drive: 15:50
1st: 13:37
2nd: 15:33
3rd: 15:27
4th: 19:28
5th: 21:26
6th: 19:20
Ramps: 30/45
Preload: 65Nm (externally adjustable)
Frication Faces: 6 per side
Offered still in its original crate and a fraction of the original cost!
Please feel free to contact us with any questions.
