Description:

For sale

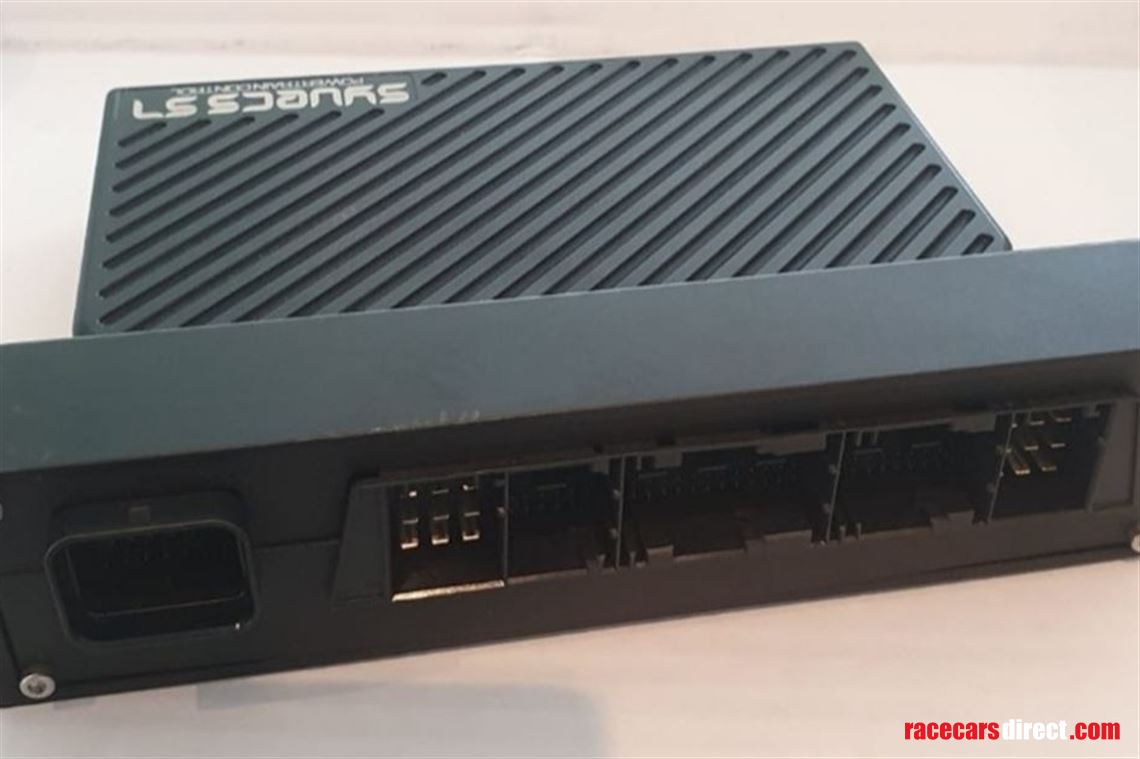

Syvecs S7 plus ecu plug and play for Bosch ME7.8 ecu's

Porsche 997.1 /Turbo /GT2

This is a plug and play ecu which has a 700bhp turbo map loaded.

your old ecu can be unplugged and this plugged in in place

It has the direct fittment plug fitted .

Will fit all porsche GT cars , also

997 gen 1, 987.1  plus any running a Bosch ME7.8 ecu plug

Call for more information..



The S7Plus is our newest management system offering 22 x Inputs, 16 x Fuel Outputs, 8 x H-Bridge Outputs 6 x Ignition Outputs, 2 x Lambda Input, 2 x Knock Input, 2 x EGT Input and Main Relay Control. All software features are enabled from factory except for Direct Injection control and Paddle-Shift control which is an optional upgrade

The S7-Plus ECU offers an extremely high level of precise engine management control. The triple processor unit uses a high speed RISC processor for code execution and an additional large FPGA for high speed engine position tracking, allowing the scheduling of code to be independent of signal patterns, increasing flexibility, efficiency and accuracy under transient conditions. This powerful combination also allows advanced control algorithms but yet easy to map for the end user still using our SCal software and S7 Firmware.

The third processor present is available for in the future users to write their own code in C for Full Vehicle Integration via Canbus and Build some custom strategies to handle some of the unique requirements which are now found in OEM Applications. Currently only Syvecs staff can do this but we are working on offering this out to all our dealers very soon!

Cased In A Sealed Aluminium Billet Unit With connection of original Porsche connector

Inputs

22 x General Purpose Analogue Inputs:

10 x 5V/Bipolar, Sensor/Sync/Speed, Programmable Trigger Voltages

4 x 5V/Thermistor, Sensor/Sync/Speed, Fixed Trigger Voltages

4 x 5V Sensor Input

4 x Thermistor Sensor Input

2 x NTK / LSU4.9 / Denso AF Lambda Inputs

2 x K-Type Thermocouple Circuit

2x Knock Input

Outputs

30 x High/Low Side Driver Outputs:

8 x Half Bridge Outputs (Max 10 Amps)

16 x Low Side Injection/PWM Outputs (Max 10 Amps)

6 x TTL / IGBT Ignition Drivers

Main Relay Control Circuit with Wake on Can Support

Comms

3 x Can 2.0B

1 x Rs232 Output

1 x Kline Output

100 Mhz Full Duplex Ethernet For Connection To PC For Programming And Data Download

Up to 64MB Internal Logging Memory (Standard is 32mb) aswell as Onboard Laptop Logging

6 to 20v input voltage range with reverse polarity protection

3 x regulated 5V sensor supply outputs with protection

Operating Temperature -55 to +125 C
