Description:

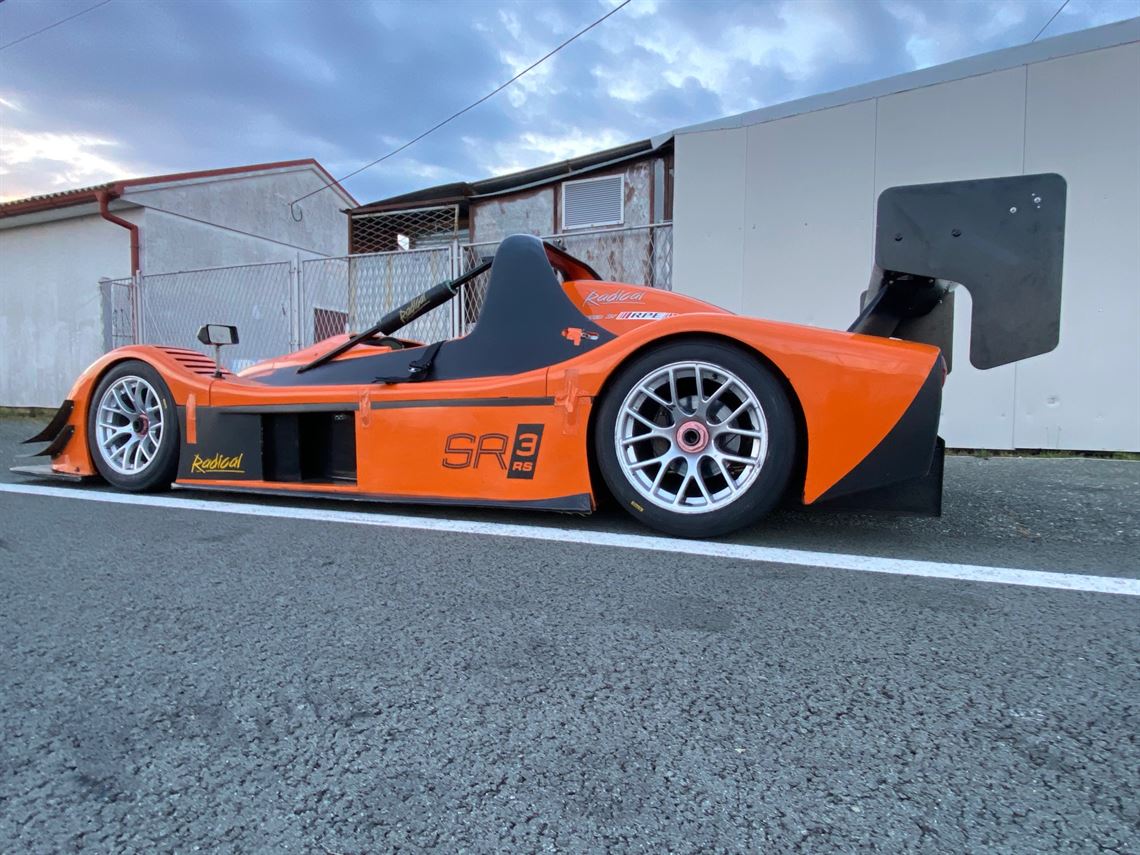

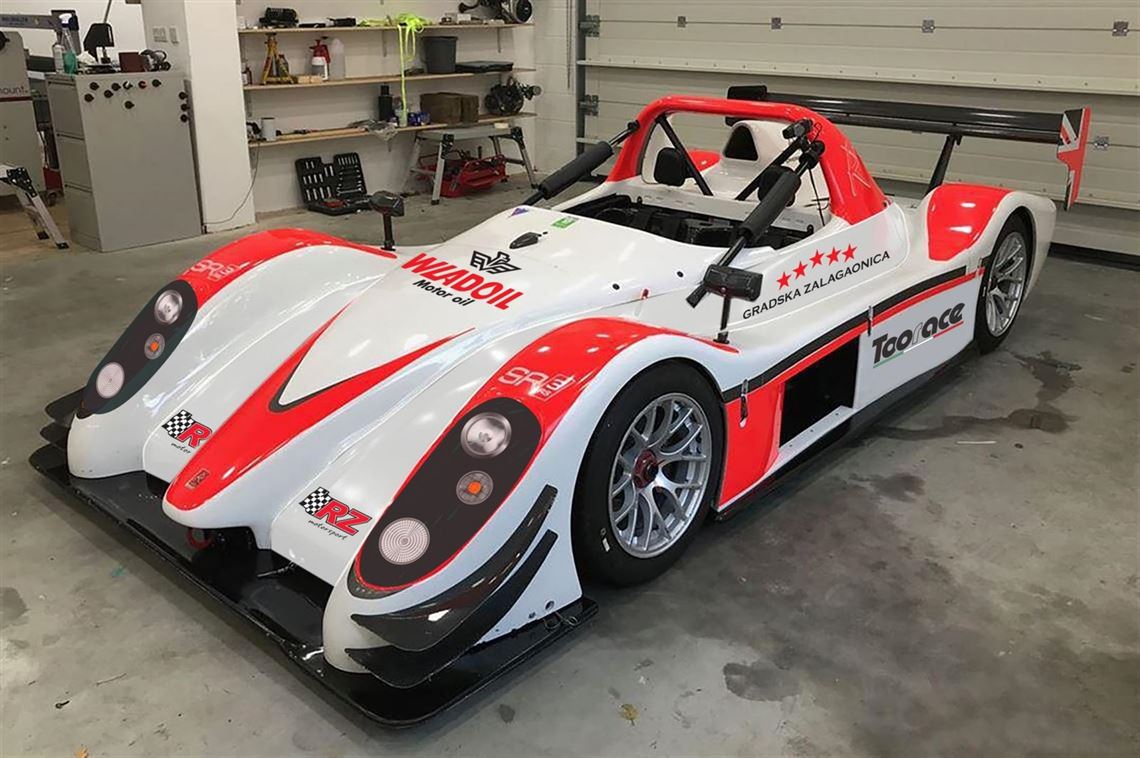

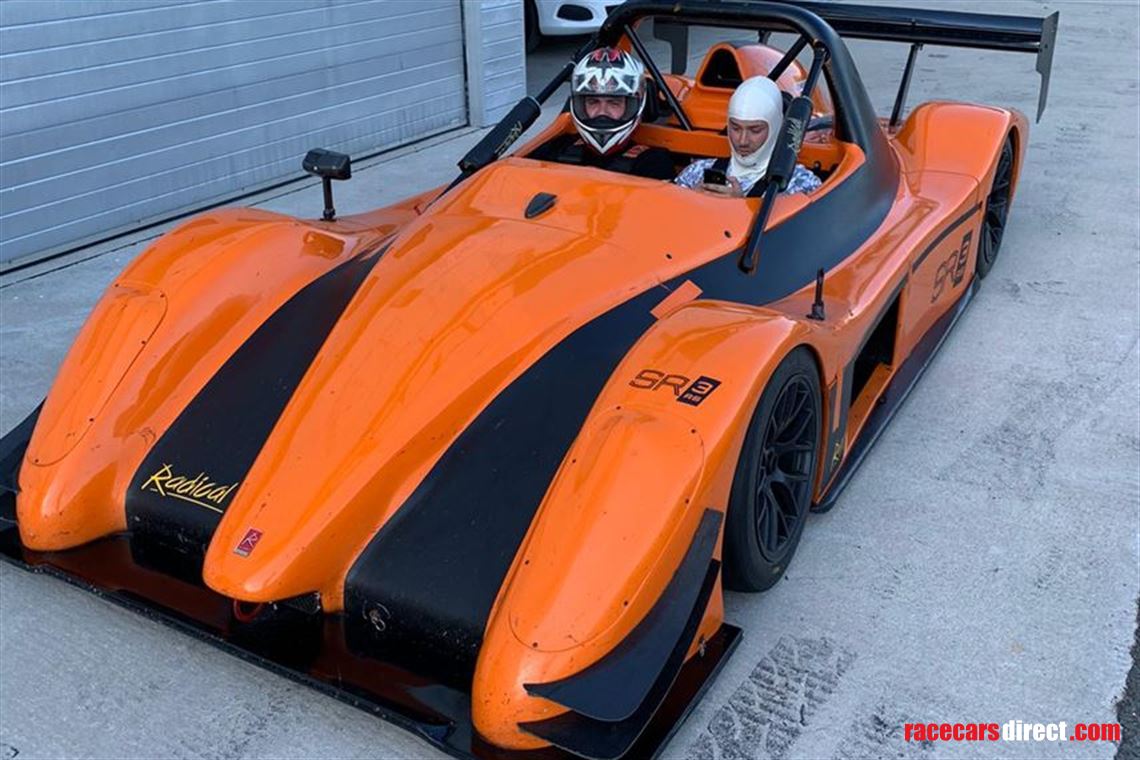

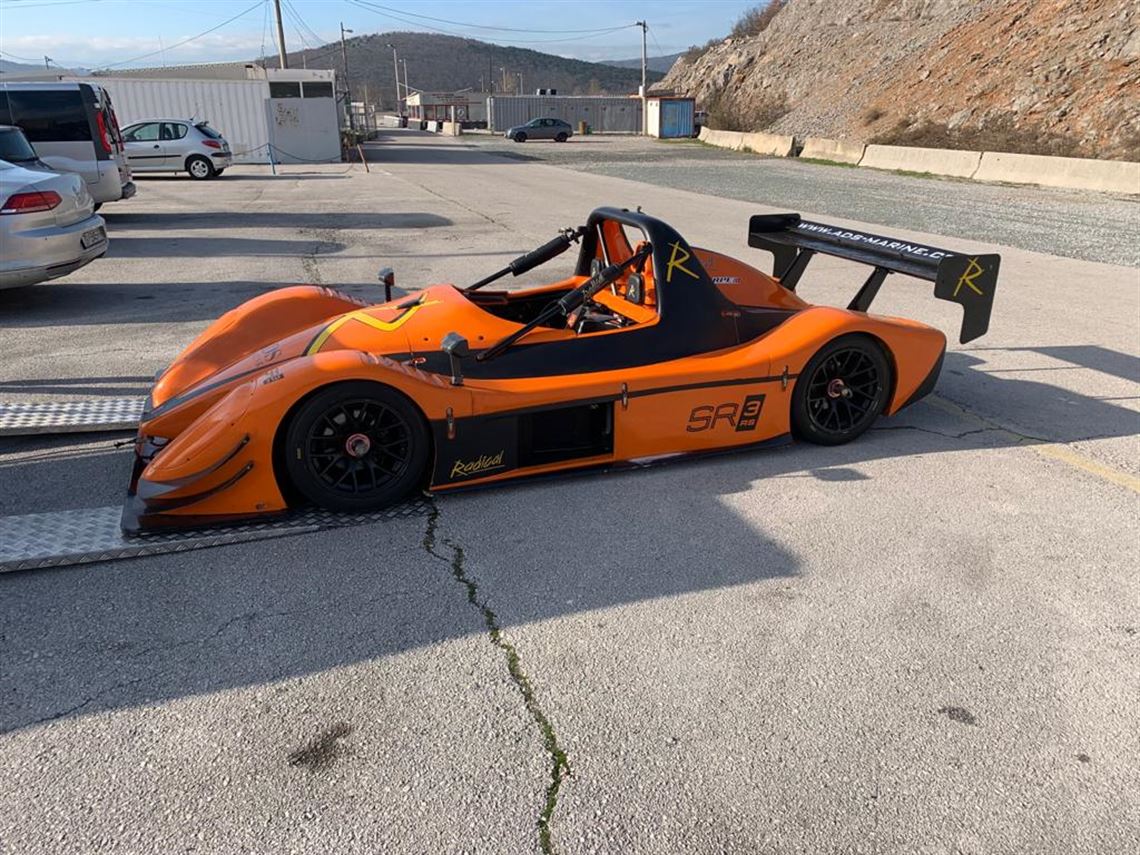

Radical SR3 RS 1500

Engine Hours: 20.00hrs  *** Engine and GDU Refresh completed April 2019***

Chassis 118.32hrs

Mileage : 8727 km

Chassis# SR3

Engine

• RPE-Suzuki 1500cc 4-cylinder DOHC engine.

• Four butterfly, 38mm individual throttle body fuel induction

system, composite ram-air box.

• Dry sump with remote oil reservoir.

• Oil cooler & electric water pump to prevent heat soak.

• Stainless steel manifold & exhaust system with race silencer.

• Upgraded hot climate cooling fan & large 700mm radiator

Transmission

• Paddle-activated, auto-blip, pneumatic gear-shift system.

• Six-speed sequential transverse gearbox (std 3.07.1 ratios).

• Gear drive system with torque-biasing limited-slip differential,

interchangeable gear ratios & integral reverse gear system.

• RPE transmission oil pump & radiator.

• Lightweight steel flywheel & multi-plate clutch.

Chassis

• Left-hand drive, two-seat, purpose built sportscar.

• Powder-coated carbon steel spaceframe chassis with

integral safety cell, complying with FIA Safety Structure test.

• FIA compliant aluminum honeycomb front crash structures.

• Removable forward-facing steel chassis stays.

• Fully adjustable pedal box.

• FIA specification 20 gallon (77 liter) fuel cell upgrade.

Bodywork

• White six-piece lightweight gel coat finish fiberglass bodywork.

• Owners name on side of cockpit.

• New high-downforce ‘double-tunnel’ composite front diffuser with

towing eye & central brake ducts connecting carbon composite

brake cooling shrouds.                                           • Wheel arch louvers front & rear.

• Composite side pods with air management system & radiator inlet.

• Composite side-skirts.

• New removable open-deck tail section incorporating highintensity

LED brake/tail lighting & central FIA rain light.

• Carbon composite high-downforce twin front dive plane upgrade.

• Carbon composite Le Mans style rear view mirrors.

• Carbon composite high-downforce bi-plane rear wing.

• New high-downforce lowered deck angle rear diffuser

Cockpit

• Composite high-sided adjustable drivers & passenger seat.

• Driver & passenger FIA compliant HANS compatible seat-belts.

• Composite head restraint with FIA shock-absorbing foam.

• FIA shock-absorbing foam forward stay head protector upgrade.

• Manually activated FIA homologated 3-nozzle Zero 360 gas fire

extinguisher system.

• Quick-release steering wheel.

• Carbon-composite dash surround.

• Dash-mounted brake bias adjuster.

Electronics

• AIM MXL2 multifunction backlit LCD display unit with digital gear

indicator, internal accelerometer & gyro, 10 LED shift light array,

real-time track map location & ambient light sensor.

• Brake pressure sensor upgrade.

• Suspension logging upgrade.

• AIM SmartyCam HD GPS in-car video module upgrade.

Suspension

• Fully adjustable Nik-link suspension system front & rear including

unequal length top & bottom wishbones, fabricated uprights,

forged steel centre lock hubs & interchangeable anti-roll links.

• Triple-adjustable bespoke mono-tube coil-over damper upgrade.

Brakes, Wheels & Tires

• Radical four-pot calipers front & rear.

• 280mm diameter x 25mm 48-vane fully floating discs, front & rear.

• 2 SETS OF Silver and 1 sets of black Radical centre lock cast aluminum wheels (8”x15”, 10½”x16”).

• AVON and HANKOOK slick racing tires (200/580-R115, 265/605-R16). 20PCS

Dimensions & Weight

• L 4077 mm / W 1800 mm / H 1093 mm, 1345 lbs.

Contact us if interested or to request more information.

00385997070404

email:fkb8008@gmail.com

possible replacement for TCR,Clio cup, radical sr8

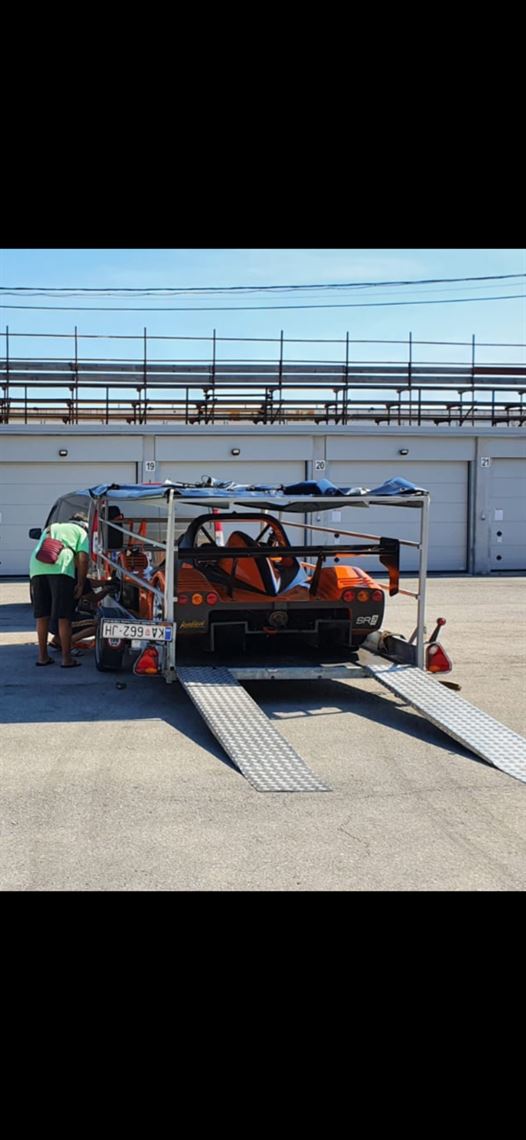

TRAILER IN PRICE
