Description:

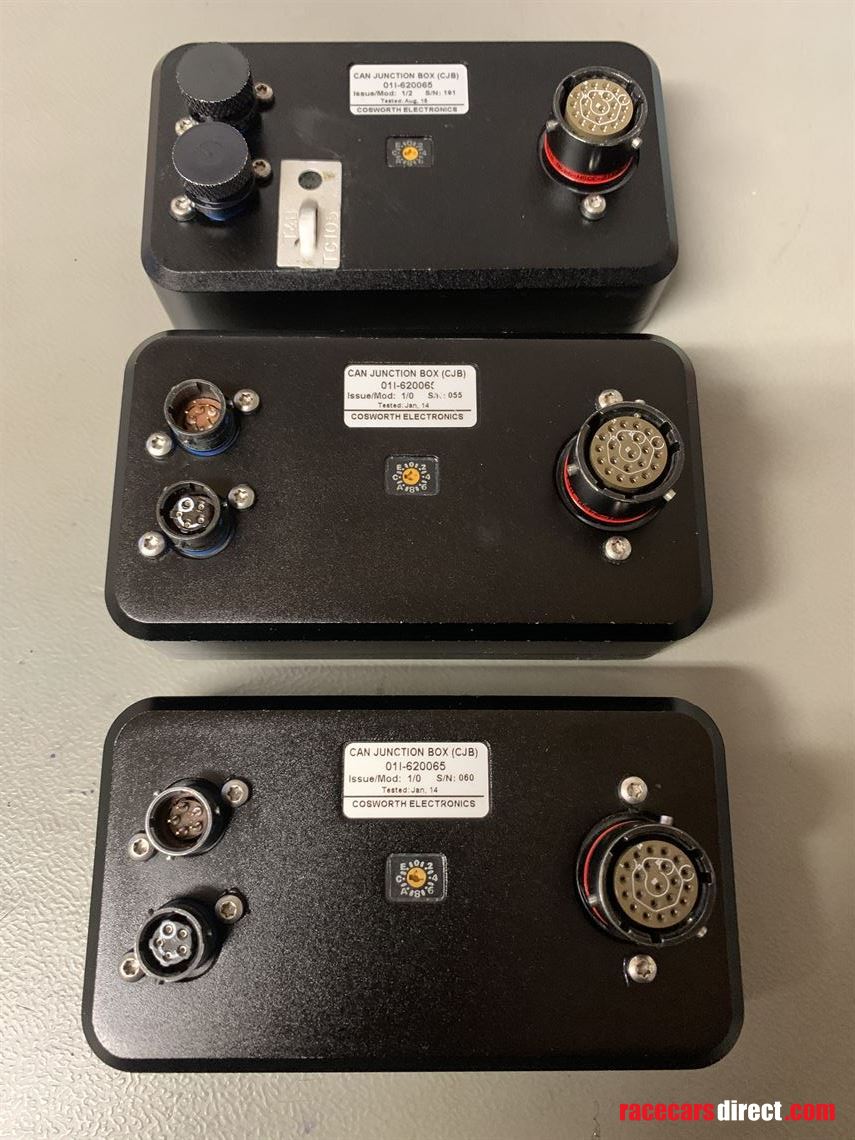

3 units available. All have been bench tested so you can buy with confidence.

£1000 for all 3 units. Retail cost £800 each.

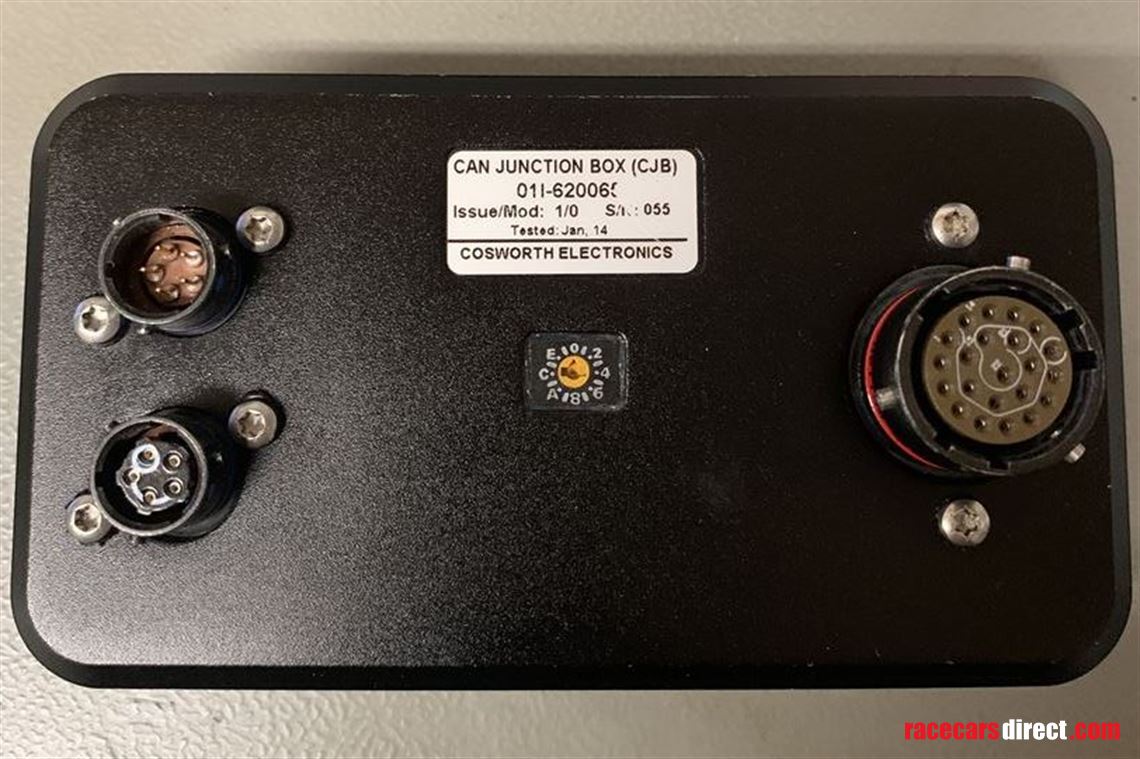

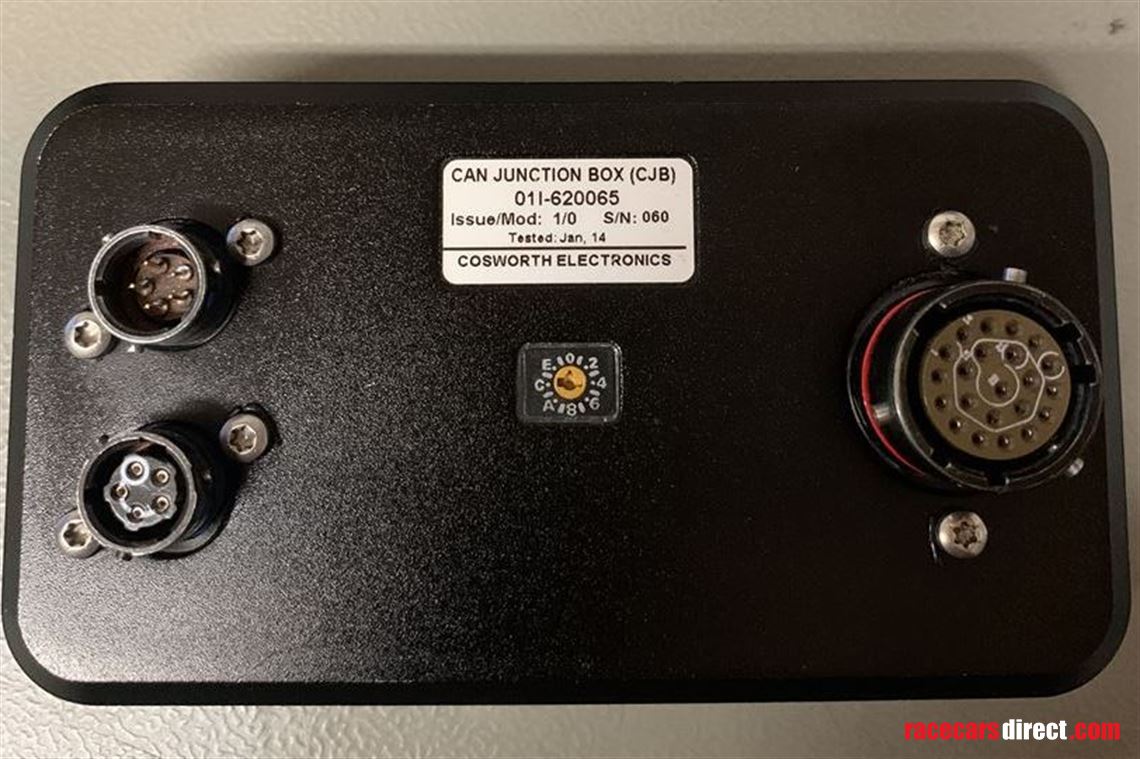

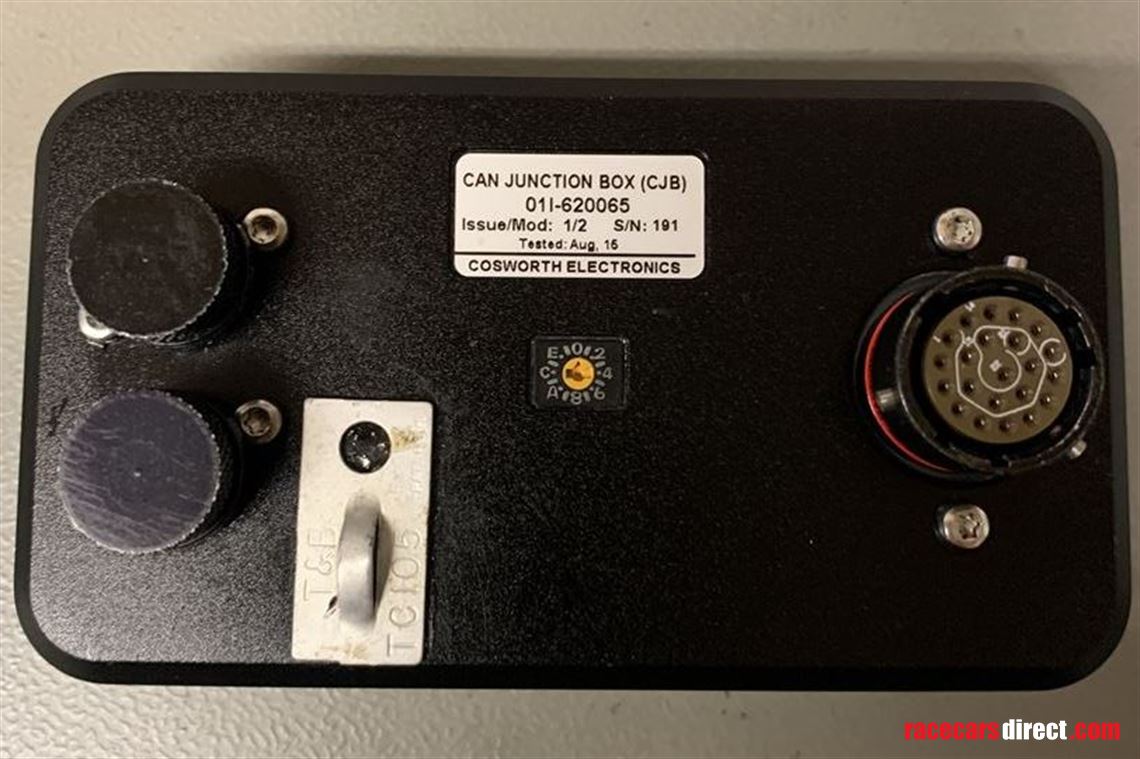

The Cosworth CJB is a fully configurable CAN Junction Box designed to be light and compact allowing easy expansion to any data system. The CJB allows complicated chassis looms to be reduced in wire count and complexity whilst also providing weight and cost reductions. The CJB has been developed with this in mind allowing for simple integration into any system requiring a minimum of only 4 wires in the chassis loom as well as a simple sensor loom. The CJB supports up to 12 analogue inputs, 3 digital switch inputs and 2 wheel speed inputs. The CJB is fitted with a 16 position switch allowing simple switching between the 8 preset CAN identification ranges. These 8 addresses are duplicated once with CAN termination (120 ohm) and once without CAN termination. The CJB allows for 8 CJB devices per bus to be connected enabling simple and large scale system expansion. The default CAN identification addresses are stored in nonvolatile memory and can be changed by using the CSB configuration menu which is available via the RS232 interface.
