Description:

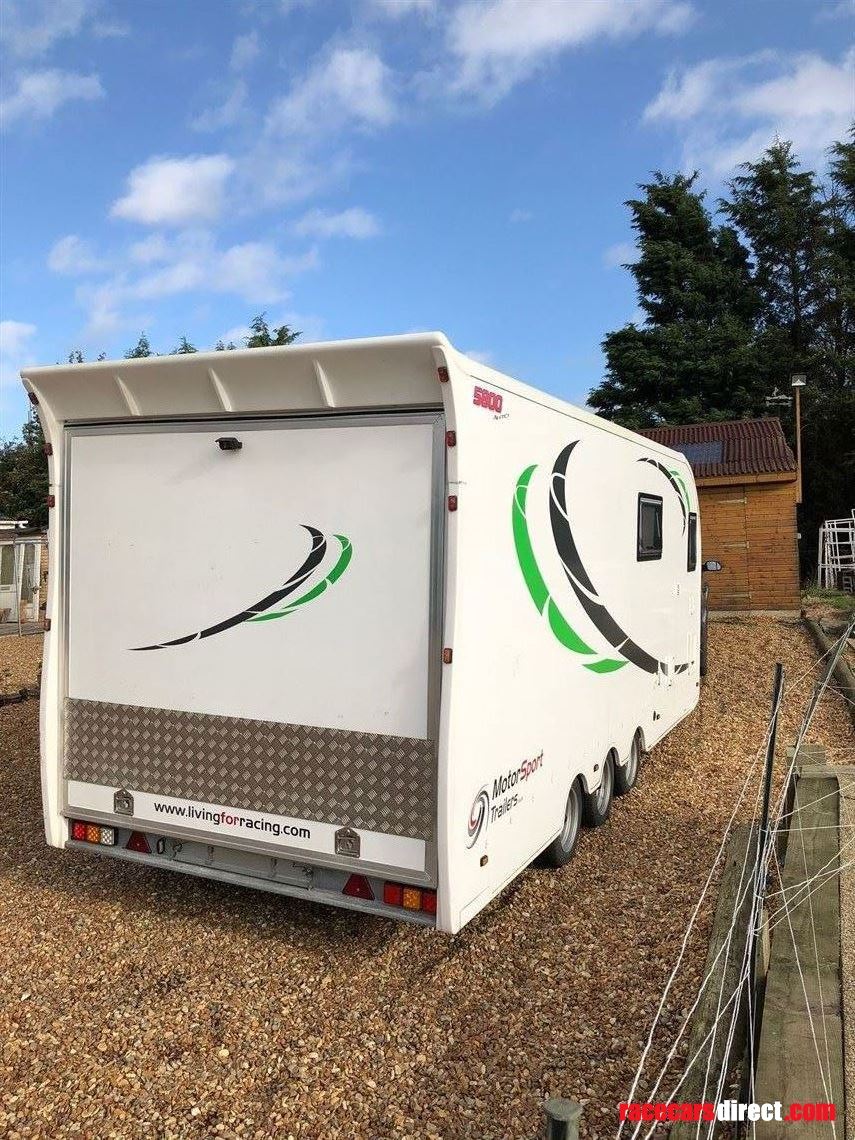

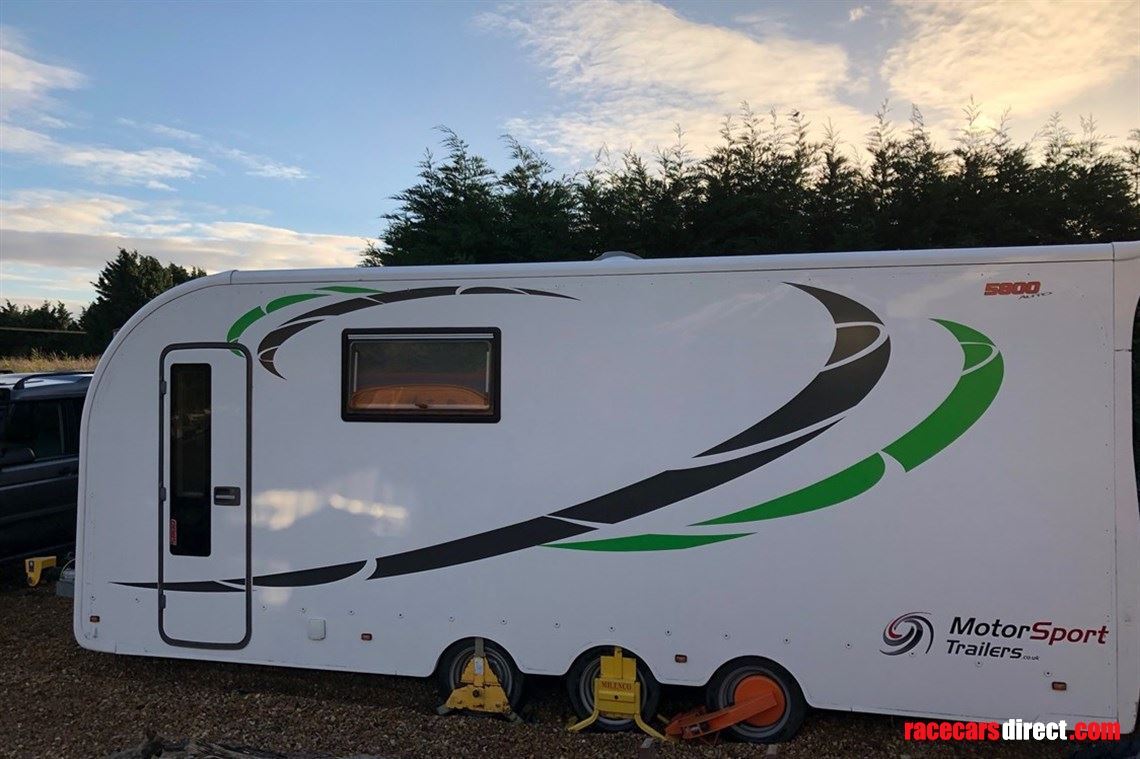

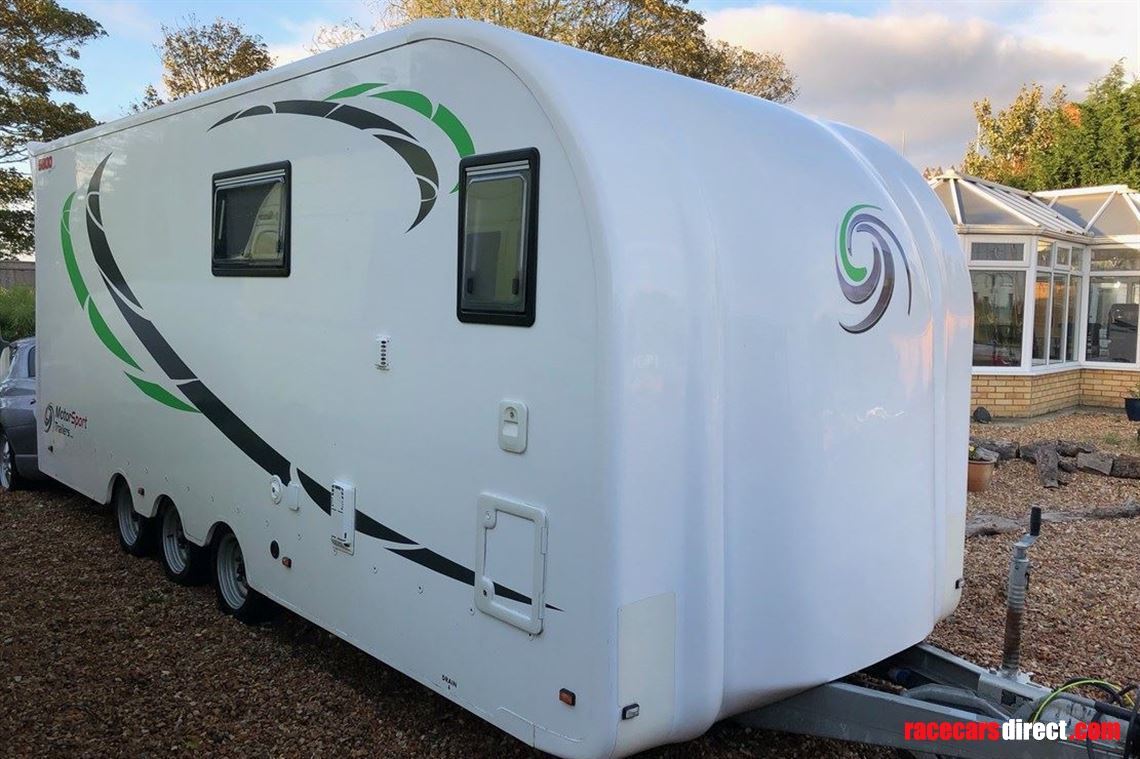

The top of the range 5800 Motorsport Trailer is 4 years old and has been the best companion for racing. It comes complete with a fully equipped living area with LPG cooker and heating system, LED lighting, 12v and 240v electrical system with external plug in points, fridge, separate shower/ cassette toilet, as well as sleeping space for you and your family, friends or team mates. The transported has been used for Caterham racing the past 2 years and has been well looked after, giving you everything you need to live well in the paddock with cooking, showering and sleeping facilities all onboard- as well as a garage area for your car, tools and spare wheels.

The 5800 series of car transporter trailer is suitable across the wide range of motorsports, not just Caterhams and the chassis is rated to 3.5t with a tri-axle design to provide stability. It has been developed with the sandwich design of panels to provide strength, durability and insulation and the GRP finish is a perfect platform for team graphics and colours. The trailer does have a few age related marks, but it has been well looked after, maintained and serviced each year.

I bought this trailer to help save my hard earned cash on hotels motor tax, insurance and depreciation v's a motor-home or second converted vehicle. And as it’s a trailer you can simply hook off and nip away from the track if you’ve forgotten something (or want to head to the pub with your mates), or the weather improves to pick up supplies for the featured gas powered external BBQ.

Overall Length (from rear to point of hitch) 7450mm

Body Length 5885mm

Outside Width 2185mm

Living Area Length to longest point 2650mm

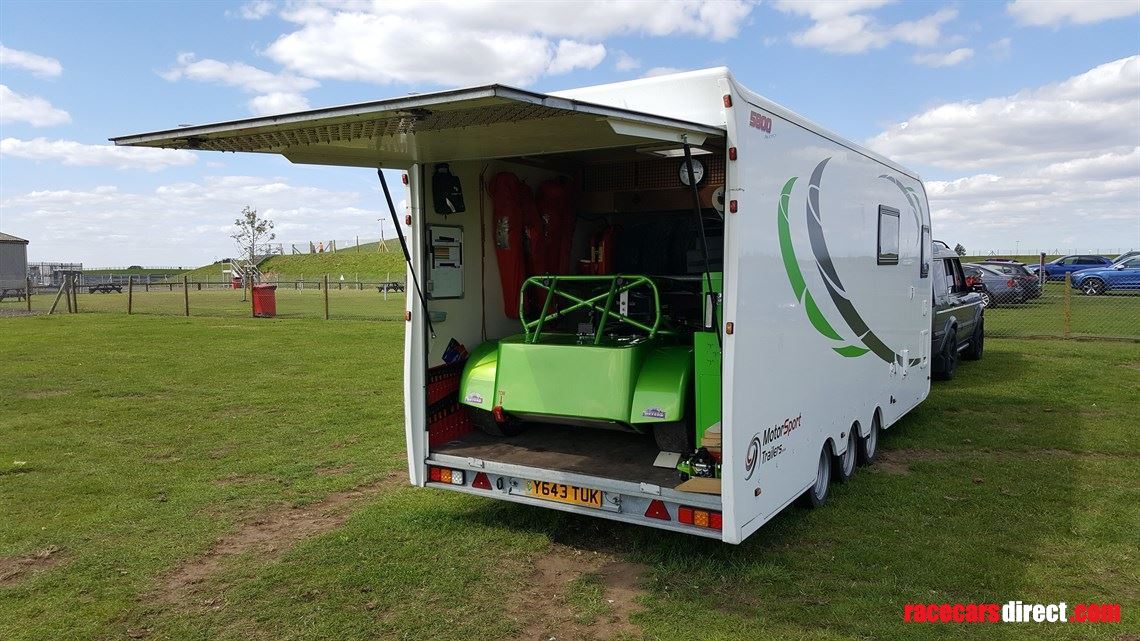

Garaging Area Length 3300mm

Garage Door Opening 1930mm W x 1630mm H

Chassis

Manufactured to EU approved standards and featuring a unique 17 digit serial number Leaf and shock suspension Drum brakes Options, Alloy wheels, Spare wheel. 3 - Capacity of each axle – 1800kgs, 13” road wheel Tire 195mm/ 50mm

Loading Ramps

2 x 6ft or 8ft aluminium ramps stored under the flooring

Marker Lighting

Fully EU compliant lighting comprising: 6 x red rear marker LED lights 12-24v 58mm x 35mm x 19mm 2 x white front marker LED lights 12-24v 58mm x 35mm x 19mm 2 x amber indicator LED lights 12-24v 58mm x 35mm x 19mm 8 x amber side marker LED lights 12-24v 58mm x 35mm x 19mm

Trailer Body Construction

22mm GRP sandwich insulated sides, rear and roof panels Fibreglass nose cone Fibreglass rear and side trims

Interior Bulkhead

Pull out double bed over garaging area

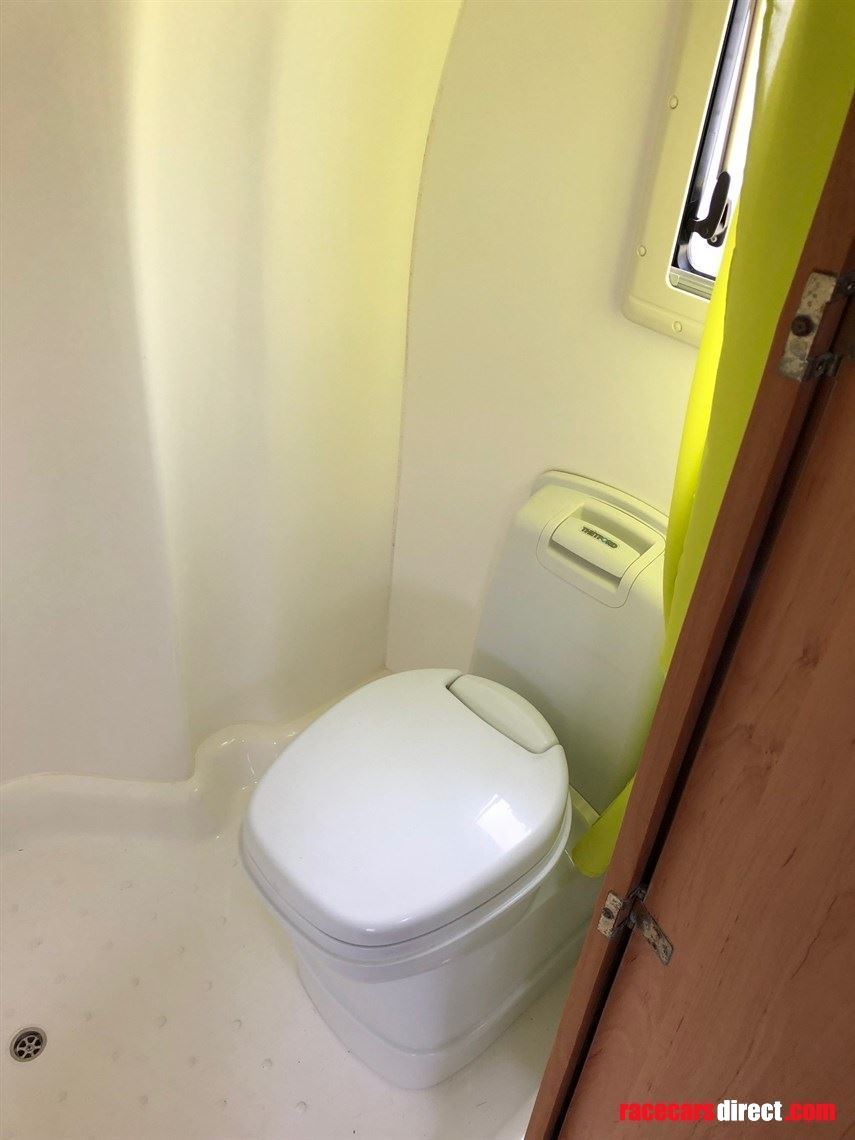

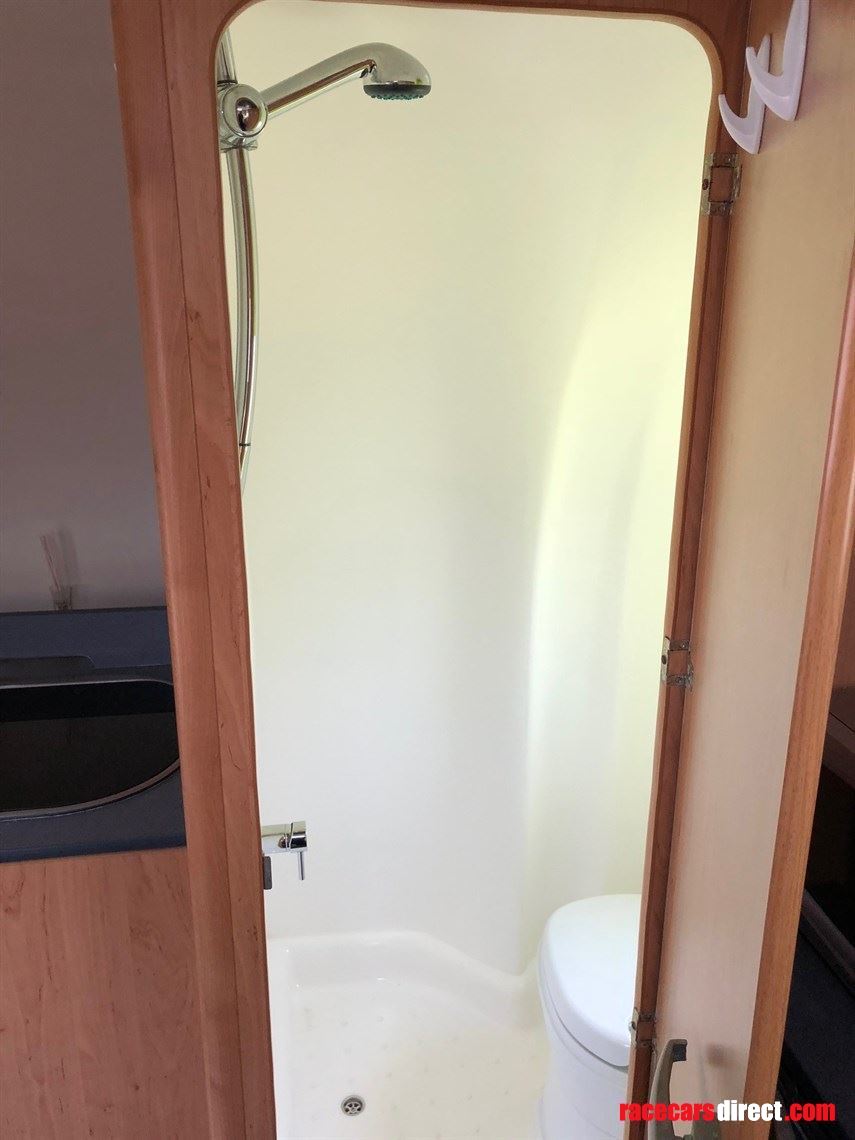

Shower Room

An fully enclosed shower room featuring: Manual flush cassette toilet. 17l waste tank, 7l flush capacity and waste tank level indicator Toilet cassette external access door with lock Double light with ABS housing, PP lens and 3- position sliding switch for activating one or both lights Top hinged window 350mm x 500m with flyscreen and blackout roller blinds. Multi-positional and lockable Chrome shower head with hot/cold mixer and riser Shower screen Toilet roll holder

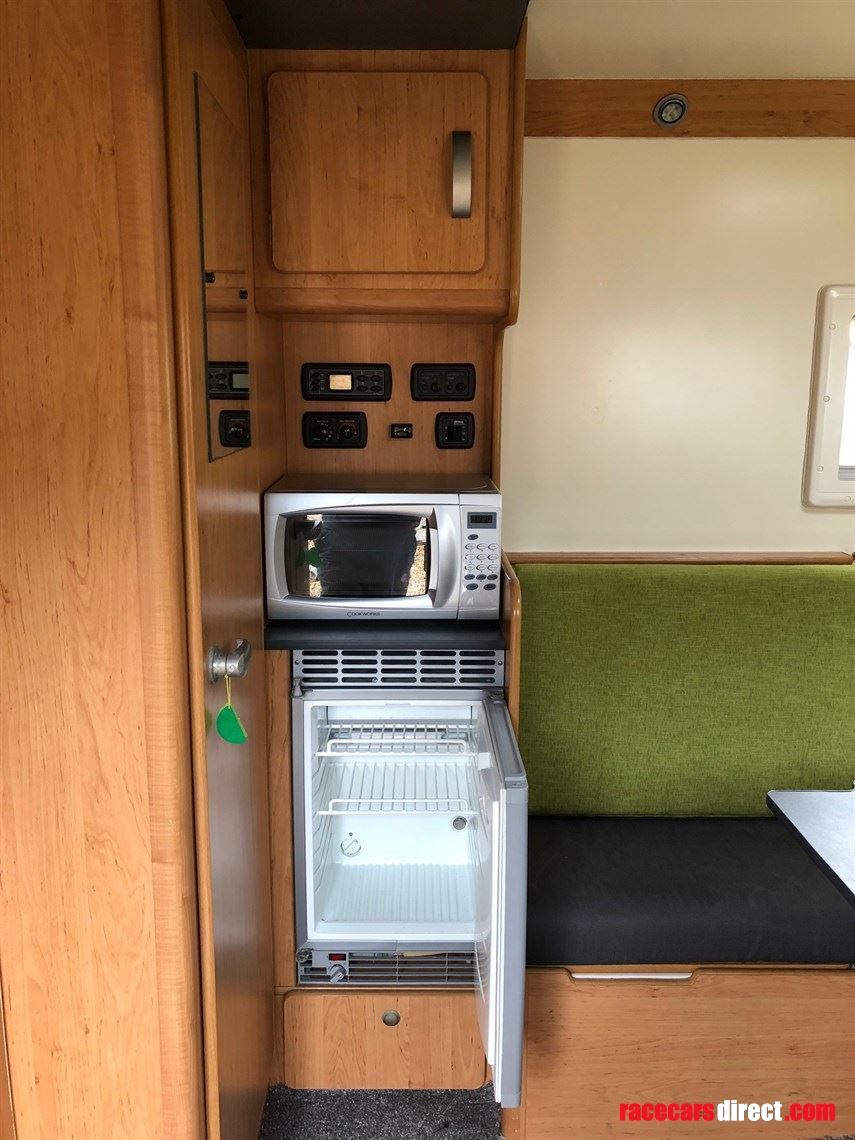

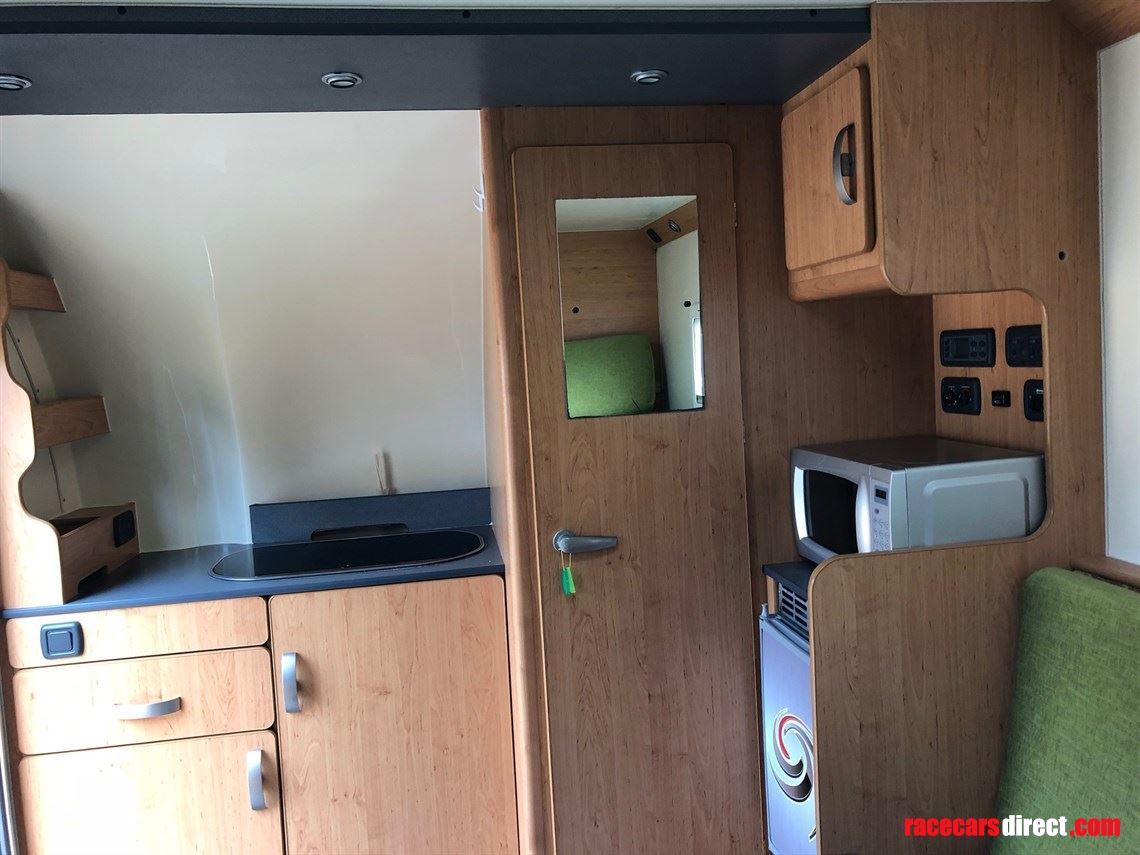

Kitchen Area

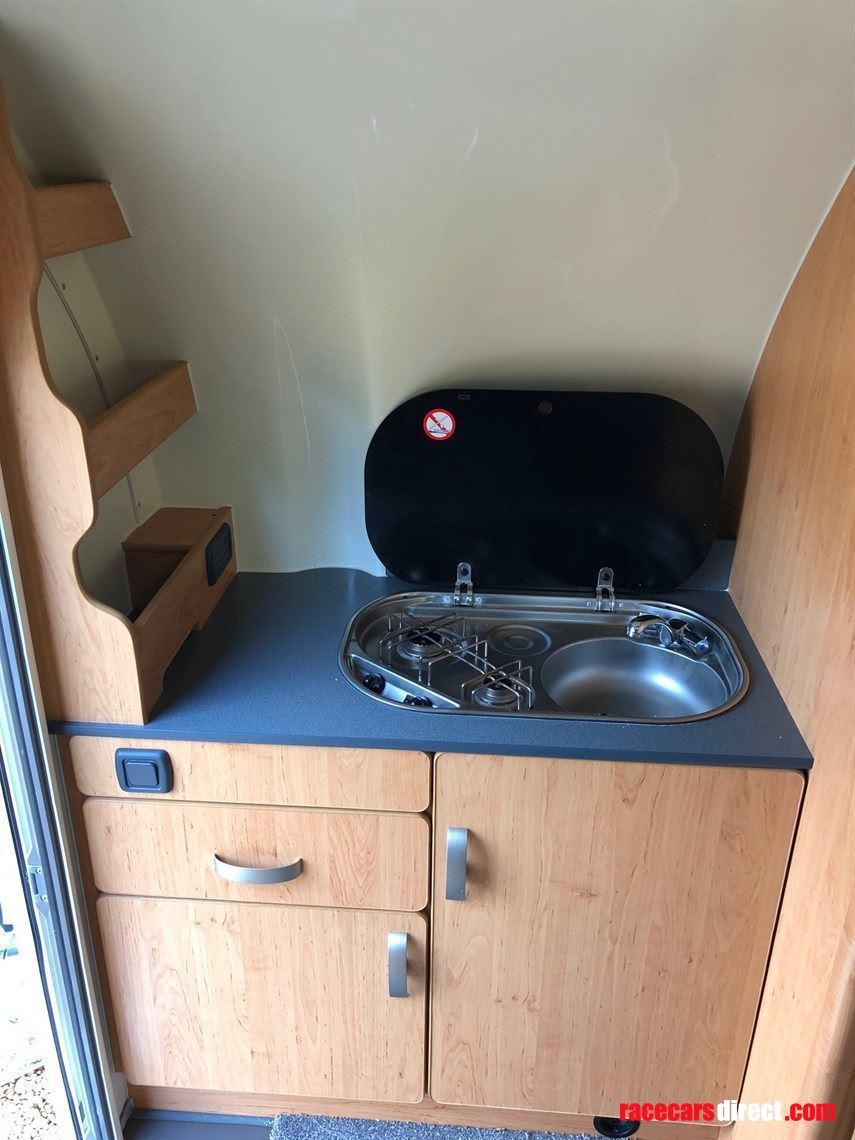

LPG 3 burner/ sink combination unit. Fitted with glass lid 30l fridge/ freezer. 230v AC/ 12v DC and LPG powered 2kg powder fire extinguisher Foldaway table Cutlery drawer Cupboard x 2 Spice rack, LPG BBQ point. Ultraflow style. Connects to 8mm gas pipe.

Heating and Gas Systems

8l LPG and electric water heater Underfloor air heater SH Mk2, Aquasmart damper kit Complete LPG system with certificate of installation 25l LPG tank 5 way tap manifold Remote LPG level gauge.

Electrics

Electrical and LPG control panel with LCD display, 16-amp switch mode battery charger, circuit breaker, distribution box and fresh water sensor Integral CO gas detector Integral LPG gas detector 9 x 12v LED spotlights 3 x LED 300mm 12v strip lights garaging area 4 x 230v 3-pin socket with box and surround Power leveller 230v site connector 12v fuse box 12v travel battery complete with 240v charger. Self-tracking satellite dish. 40cm high performance antenna (equivalent to 60cm offset dish). Seven satellites already stored and can be used with any digital decoder (note this is supplied but needs connecting).

Water Tanks

80l polypropylene fresh water tank located under the floor 40l polypropylene grey water tank located under the floor

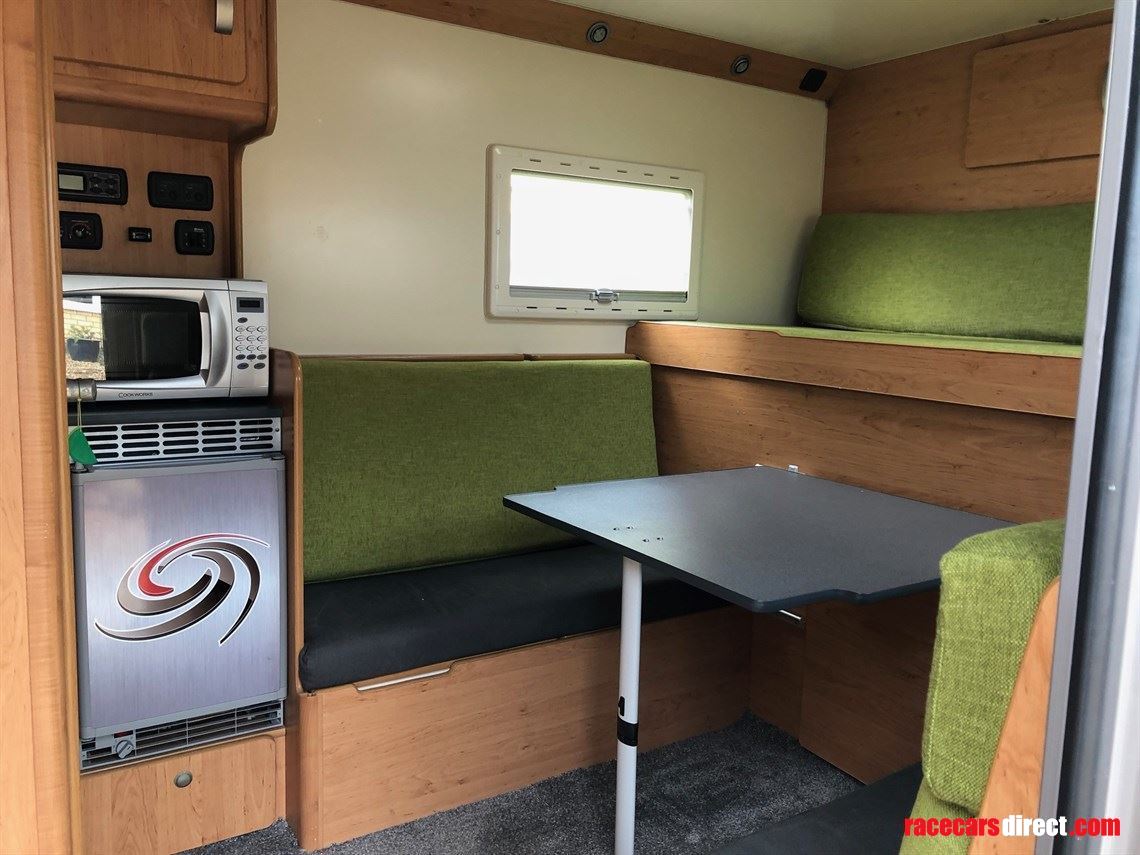

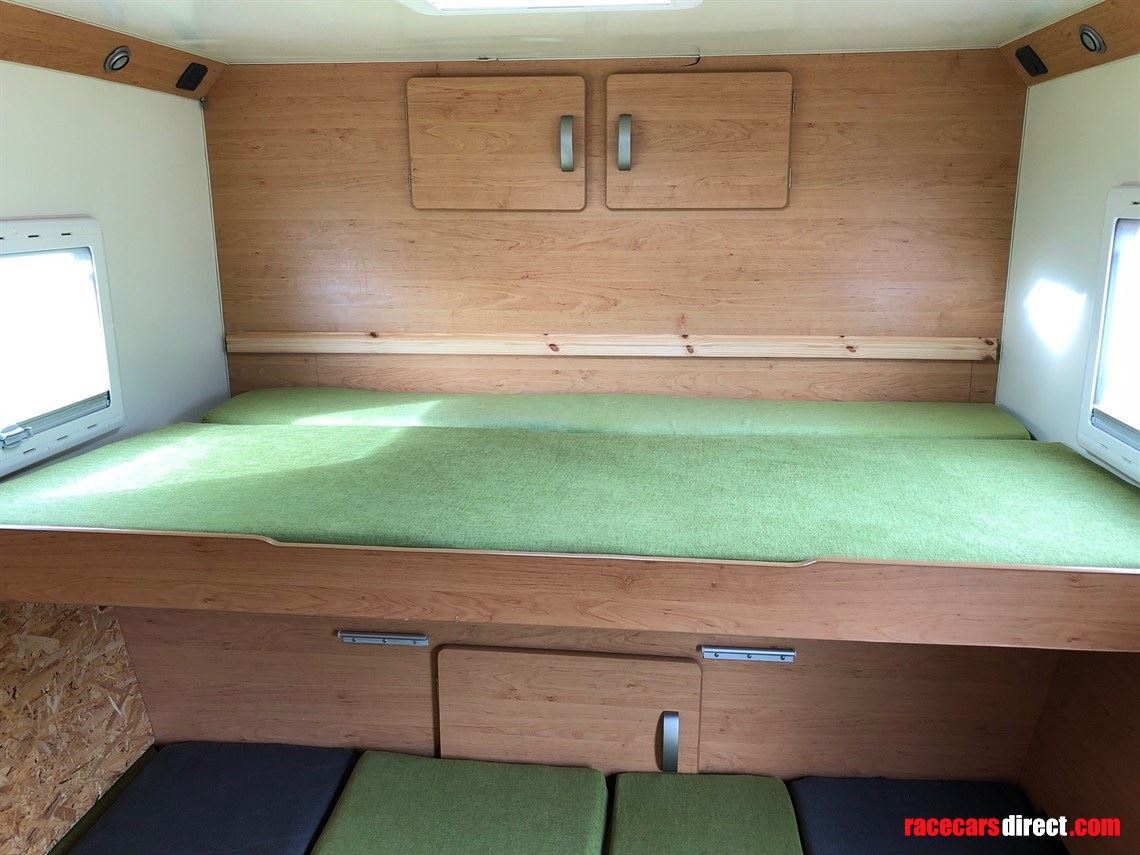

Sleeping Space

Single bed (pulls out to a double) in living area over garaging area Fixed seating converts to double bed. Storage under seating, All beds/ seats complete with 100mm fire compliant foam mattresses finished in green.

Windows

Top hinged window 750mm x 450m with flyscreen and blackout roller blinds. Multi-positional and lockable. Positioned on nearside or offside 2 x roof window 400mm x 400mm. Inner frame with blackout and flyscreen (can be adjusted separately). Multi-positional opening. Forced ventilation, 750mm x 500mm top hinged window on nearside or offside in living area with fly-screen and blackout roller blind.

Interior Finish

Interior wall finish brilliant white, RAL 1013 cream

Living Space Entrance Door

1685mm H x 515mm W entrance door with integrated window and blind system. Single point locking system External door retaining catch.

Rear Door

22mm GRP sandwich insulated panel Polial hinge at top of door 2 x drop T-handle lock, stud mounted with keys 2 x 14-28-500-1150-MB-MBV-800N gas struts 57mm W aluminium edging trim

Tie Down Points

8 x recessed tie down points

Flooring

15mm Resin impregnated plywood

Storage

Aluminium under floor storage 800mm L x 400mm W x 235mm H with lift out lid

Tyre rack for four spare wheels (can fit up to 8 when storage boxes moved) and tow large storage boxes for tools etc

Winch

Concealed 12v built into living area with hatch to garaging area Remote control for winch

Please call me on 07789688298 for further details.
