Description:

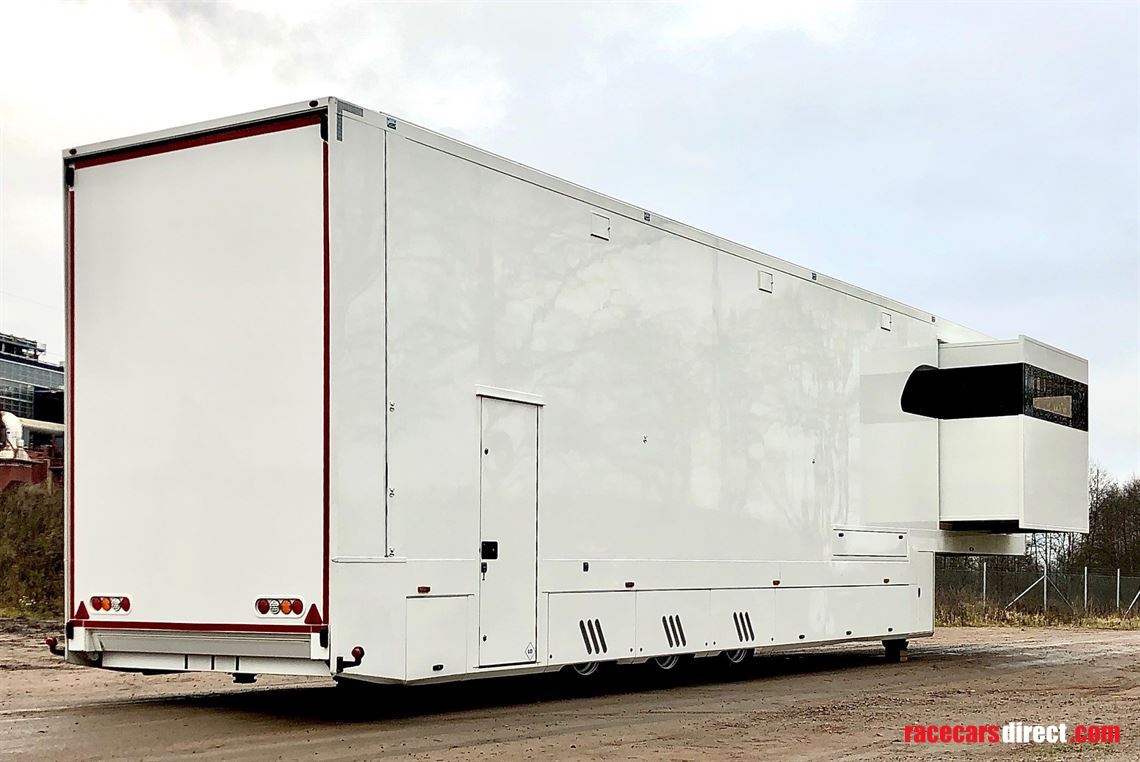

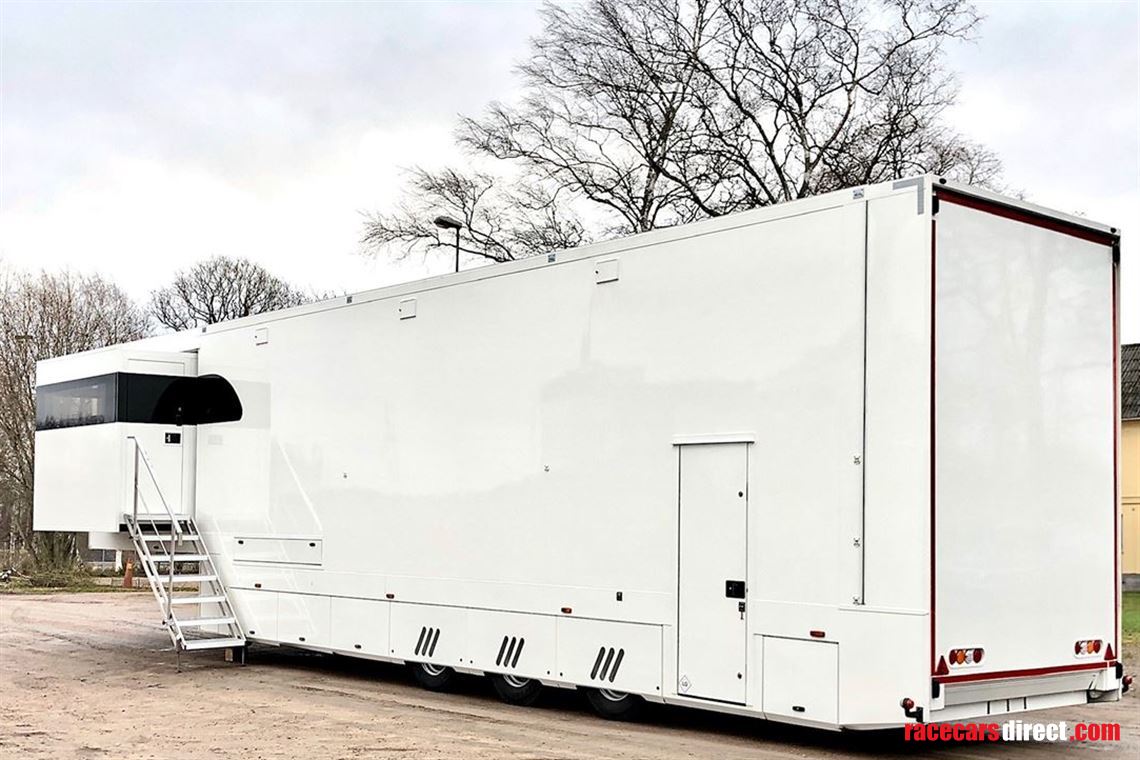

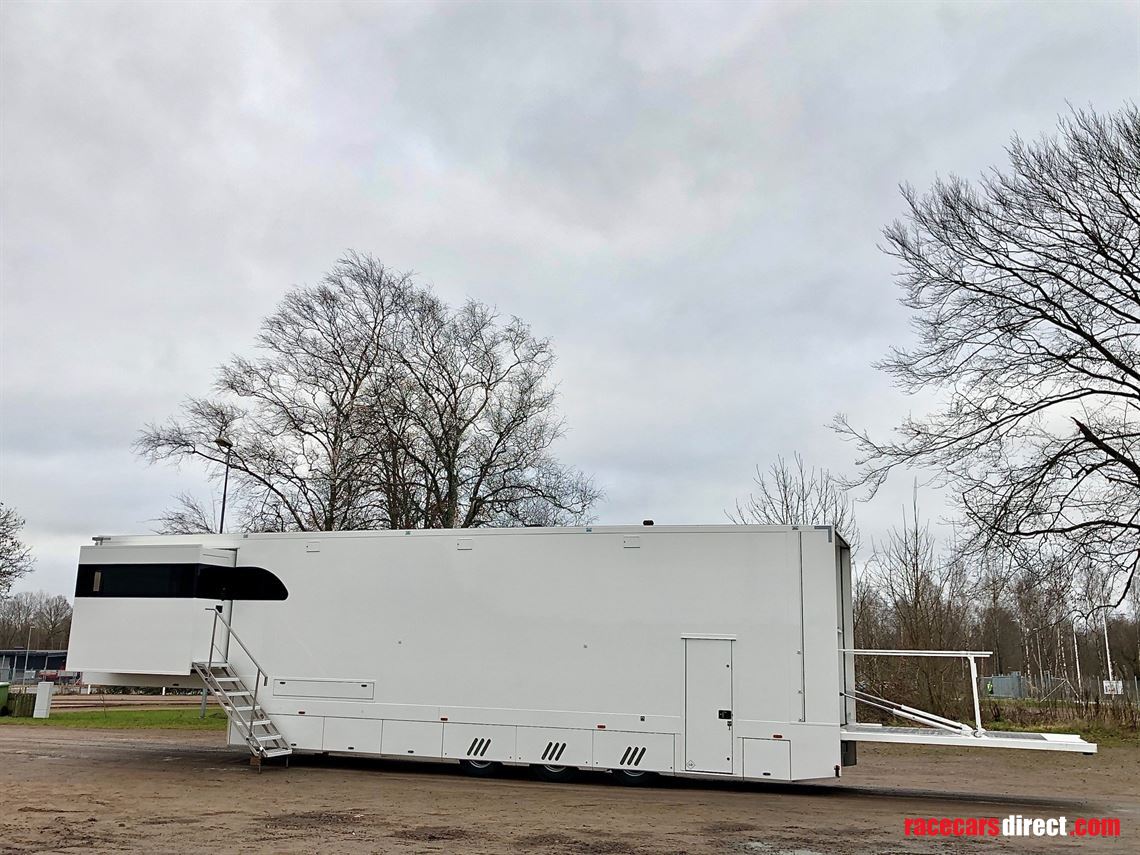

Brooklands speed Race transporter, built new 2012

Vehicle Type                   Stepframe Race Transporter.

Build Standard             EU and VOSA regulated including masses and weights.

Chassis

• Stepframe I beam construction
• Twin-Axle tandem wheel with drum braking.
• Adjustable ride height air suspension.
• 19.5 wheels.
• EBS electric braking system.
• Rear crash and under run bar.
• Anti-ground skid plate with increased ground clearance at rear to rally spec.
• Box Construction
• Monocoque 50 x 50 box steel frame skeleton fabricated onto chassis member.
• 40 x 40 vertical steel posts for car deck mounting giving approximately 1500mm height to bottom and top deck.
• Insulated one piece roof section.
• Solid composite side and bulkhead panels press bonded onto steel frame with no visible fixings.
• Window aperture into front office

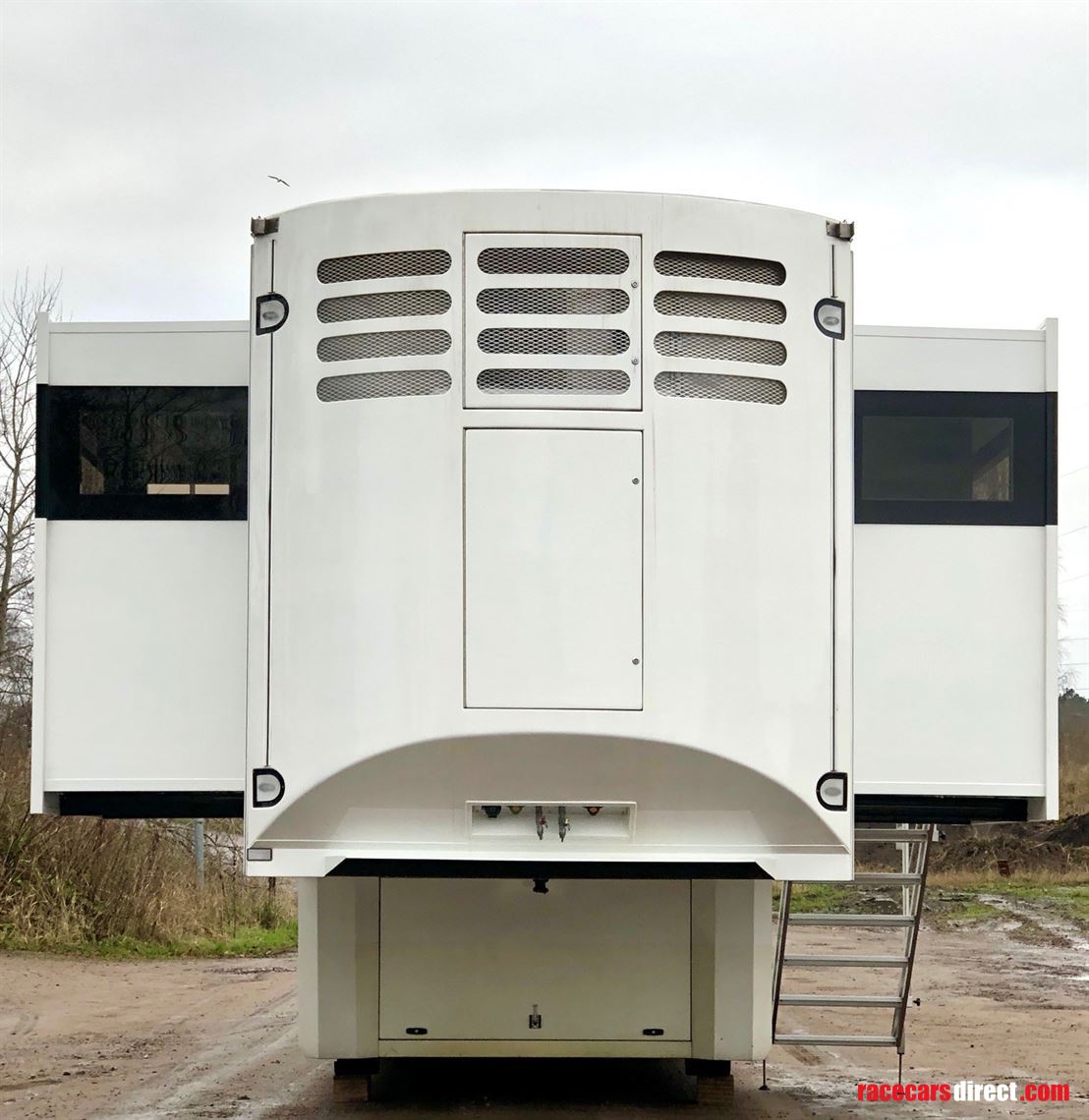

• One piece GRP nose cone section with full size alloy door openings with vented air conditioning openings.
• One piece full length radius rave and cant rail cappings.
• Alloy shaped frontage to locker doors and wheel covers.
• Shaped front swan neck covers and flat opening generator door.
• Alloy box constructed locker system.
• Radius side cheek panels cover lift platform when folded.
• Radius roof capping over lift with rubber deals.

Tail-Lift

• 2500kg  Dhollandiar lift.
• Full size steel and alloy platform.
• 2 x pull out ramps.
• Plug in wander lead and platform operation.
• 24 volt independent battery system.

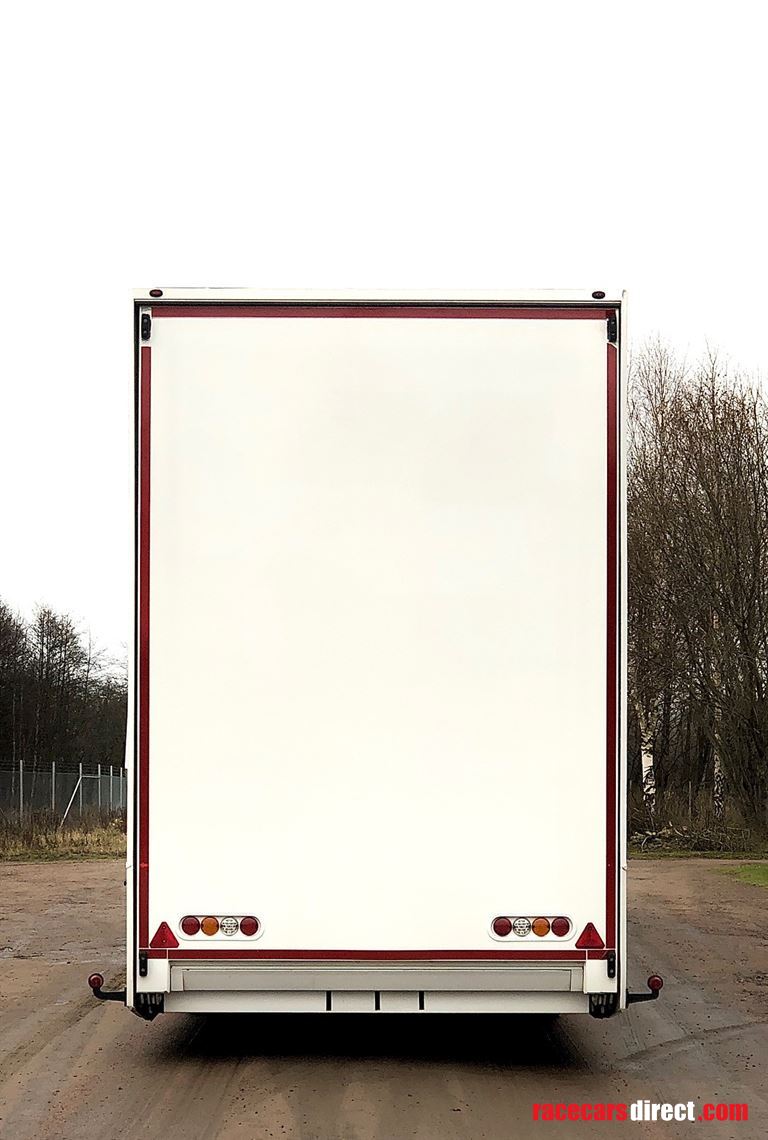

• Fully finished structure giving smooth lines and one piece rear panel with recessed road lighting.
• Full tilt function.

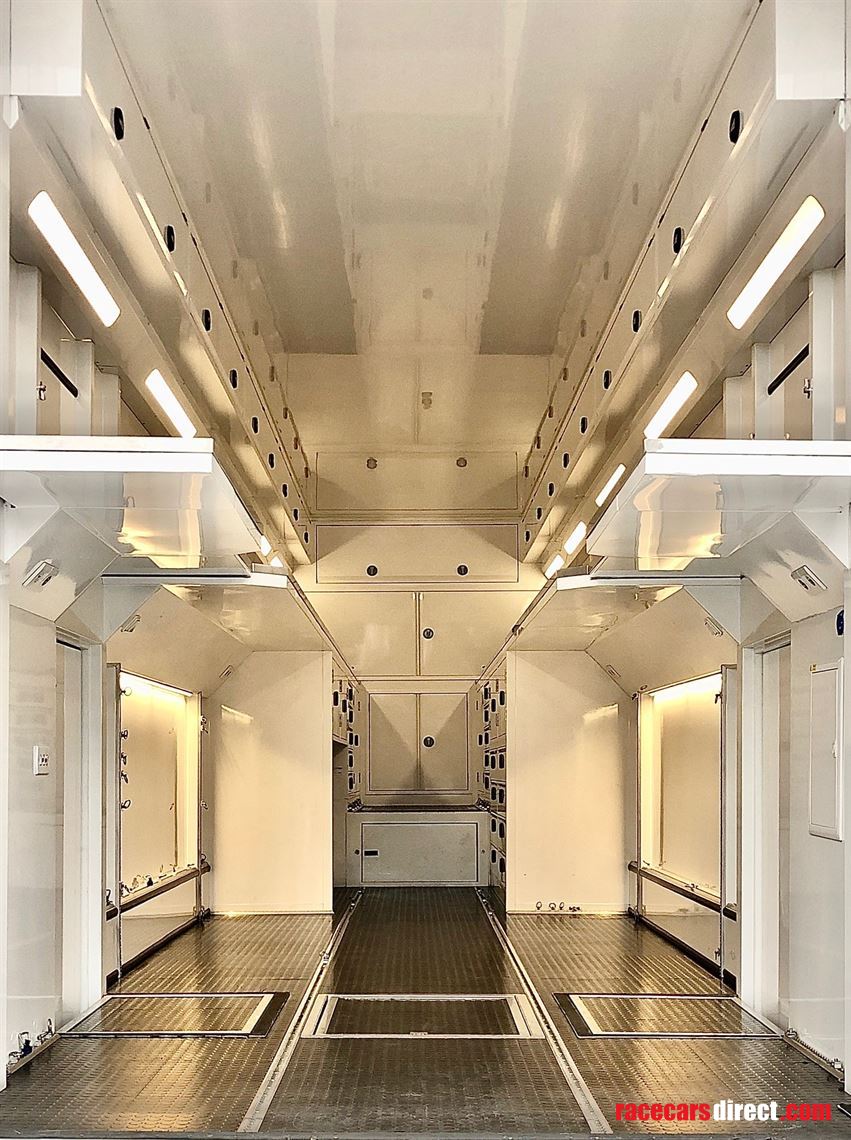

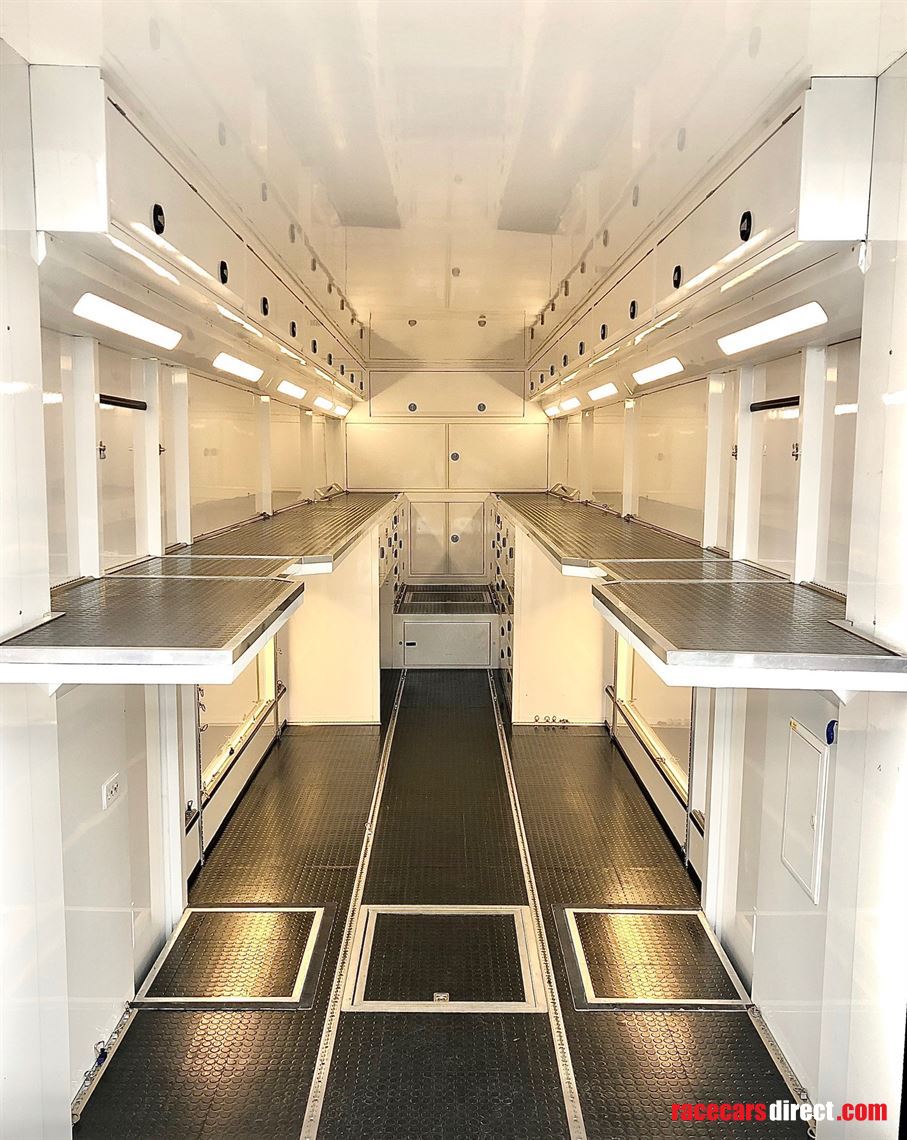

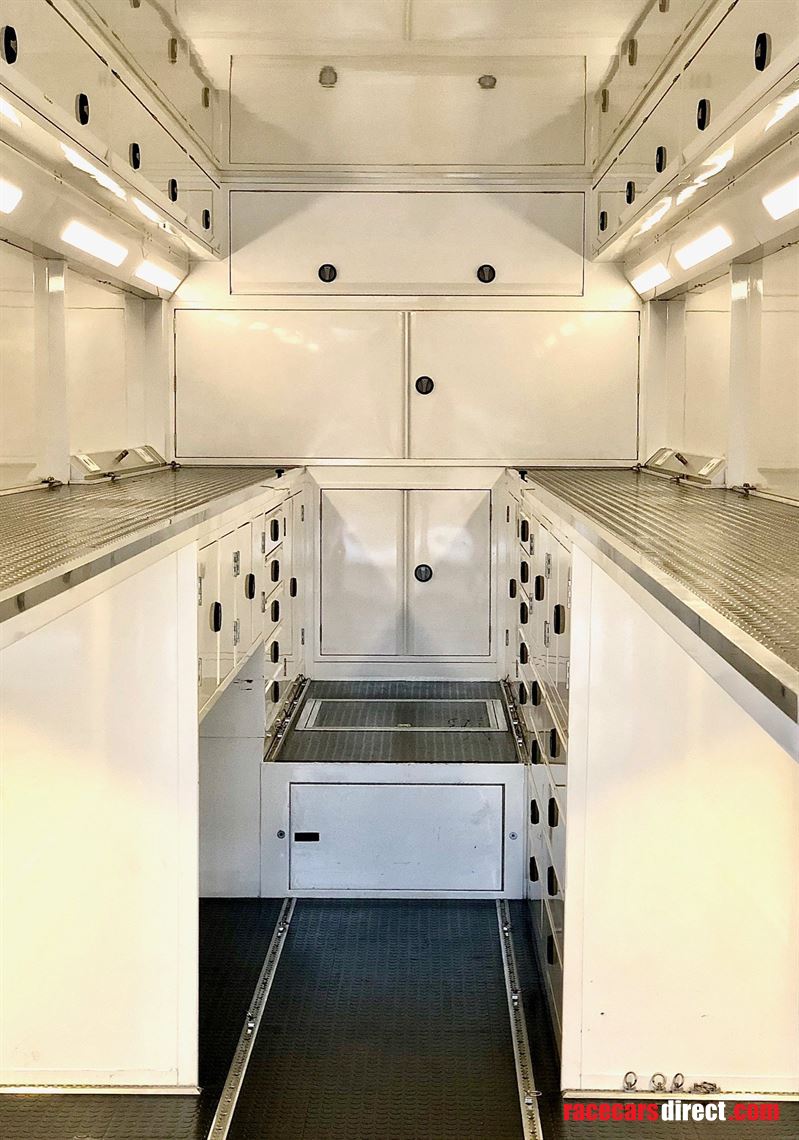

Rear Deck

• Double tier car deck running approximately 10m nearside and offside.
• Ceiling to car deck suitable to Touring, Rallycross and rally cars ETC
• Surface and recessed unwin track as required.
• Alloy capped over rubber dot matting.
• All structures and steelwork capped.
• LED shaped lighting boxes in ceiling to panel joints.
• Alloy entrance door with internal steps to bottom race deck.
• Under deck paneled in with LED lighting and electric sockets.
• Alloy kicker place alloy bottom deck in panel joint..
• Alloy built in drawers and cabinets
• Complete area spray painted in high gloss white.

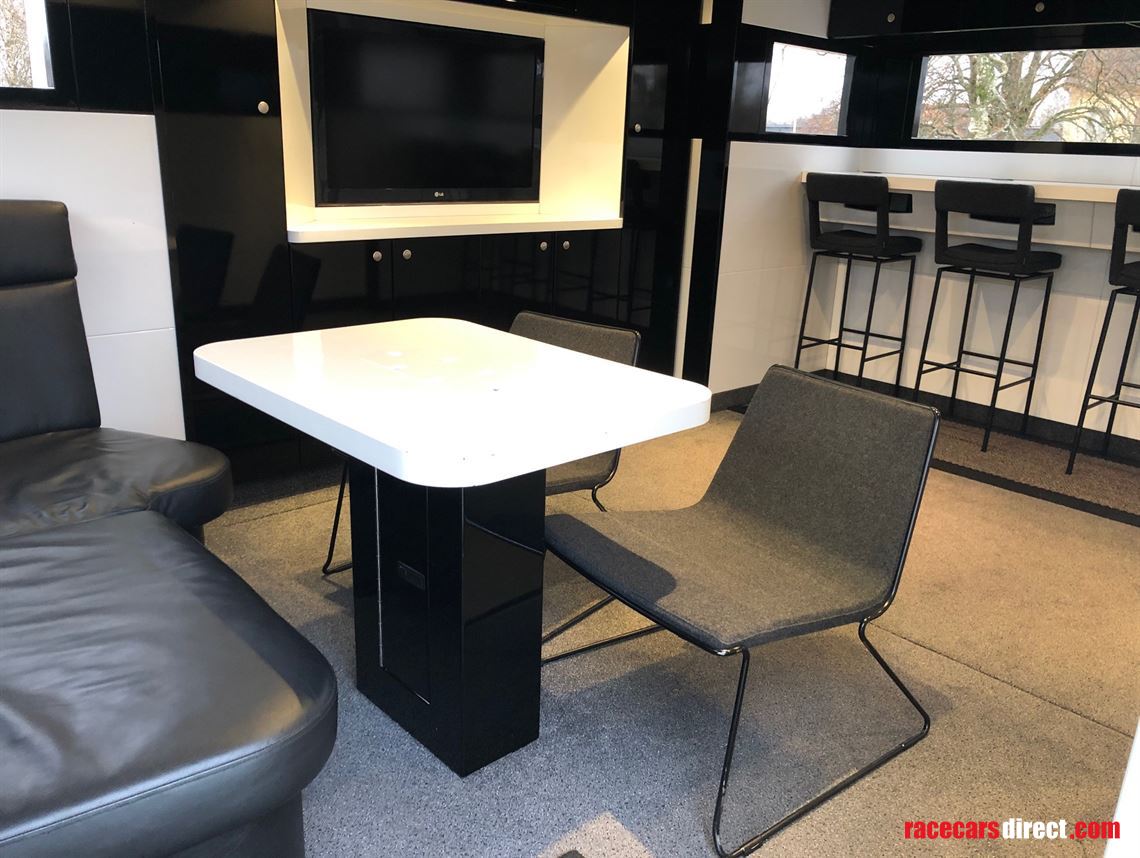

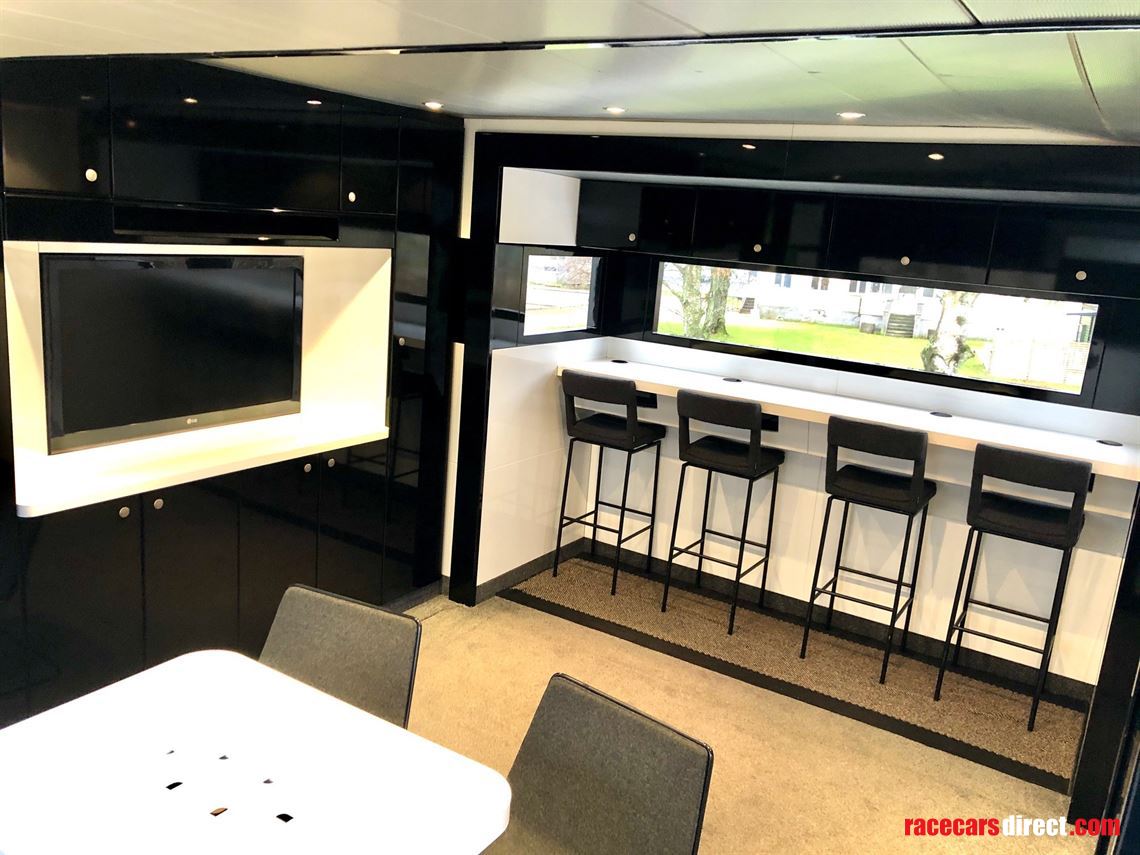

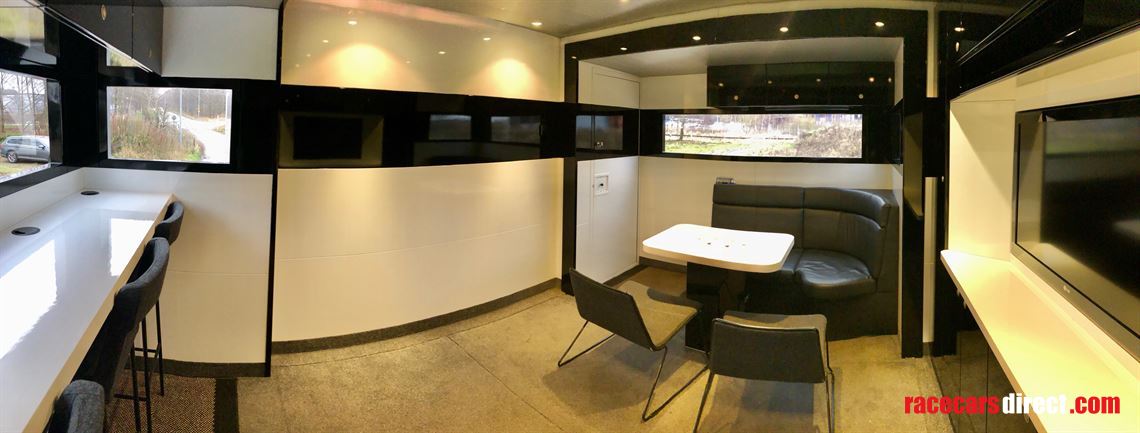

Office

• Front bulkhead wall, with large TV connected to table
• Side access staircase (stainless and alloy).
• Window aperture to nearside and offside with tinted black glass windows.
• Area lined and insulated to conceal wiring and cable runs.
• Insulated walls.
• Ceiling with LED lighting.
• Décor Dark Grey leather sofa, Gloss white tables, Gloss black cabinets on bulkheard and over tables

 Road Lighting

• Full LED to VCA regulations.

Air Conditioning

• Climate controlled heat/cool to office.

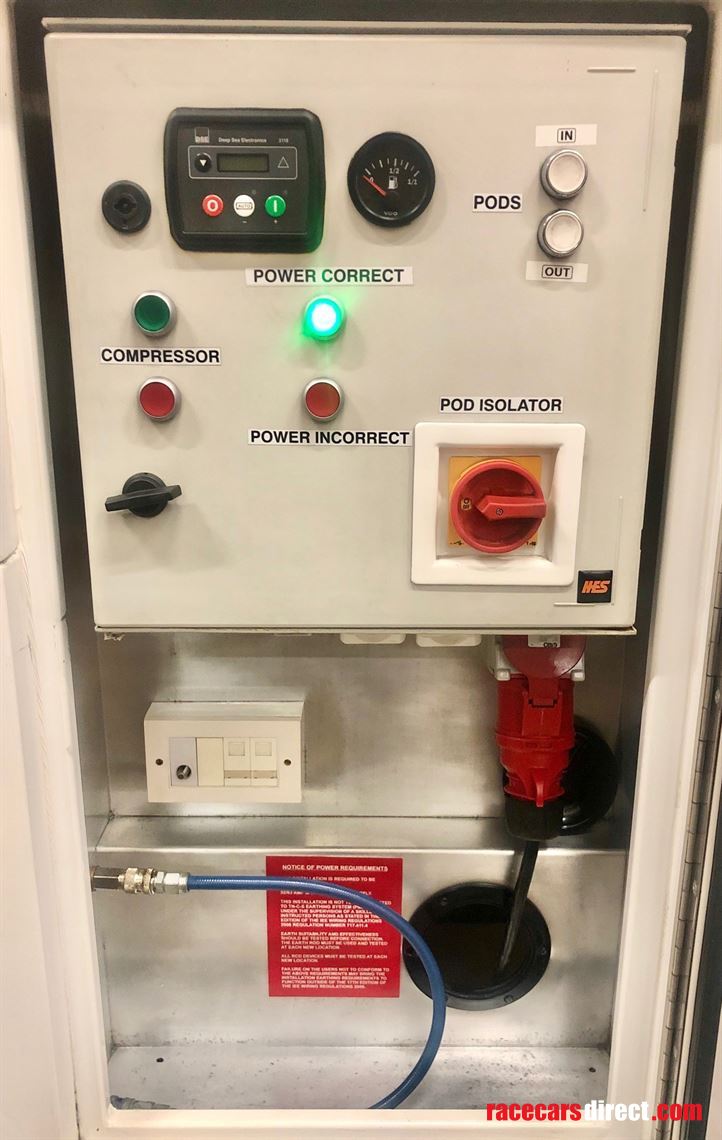

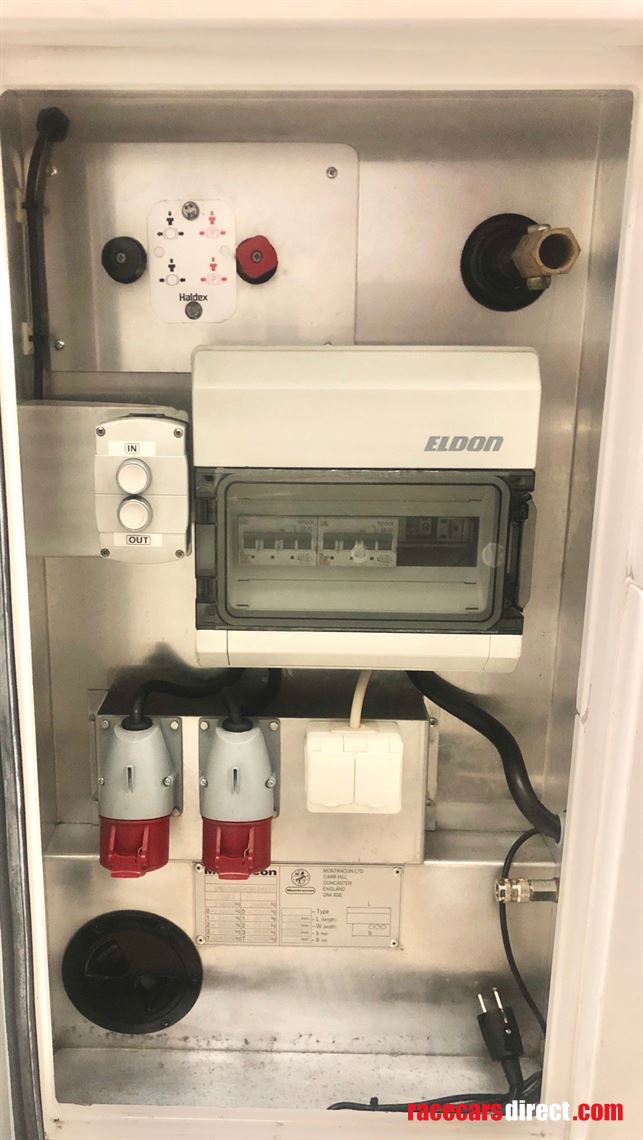

Electrics

• Full wiring on cable trays and recessed into walls.
• Full 17th edition and EU regulations.
• Flush fitted switch gear and sockets in all areas.
• LED lighting.
• Full RCD fuse protected.
• 3 phase 32 amp land line with changeover switch.

Other

• Hydro vane compressor in nose cone and piped to locker and race deck.
• Electric start generator fitted into acoustic box in swan neck
• Sky reciever and satelite dish
• Stegmeir awning with extension 17M x 8M, brackets on trailer to mount both sides
