Syvecs S6Plus ECU - SOLD

AGS

This is now SOLD. Search for similar items.

Description:

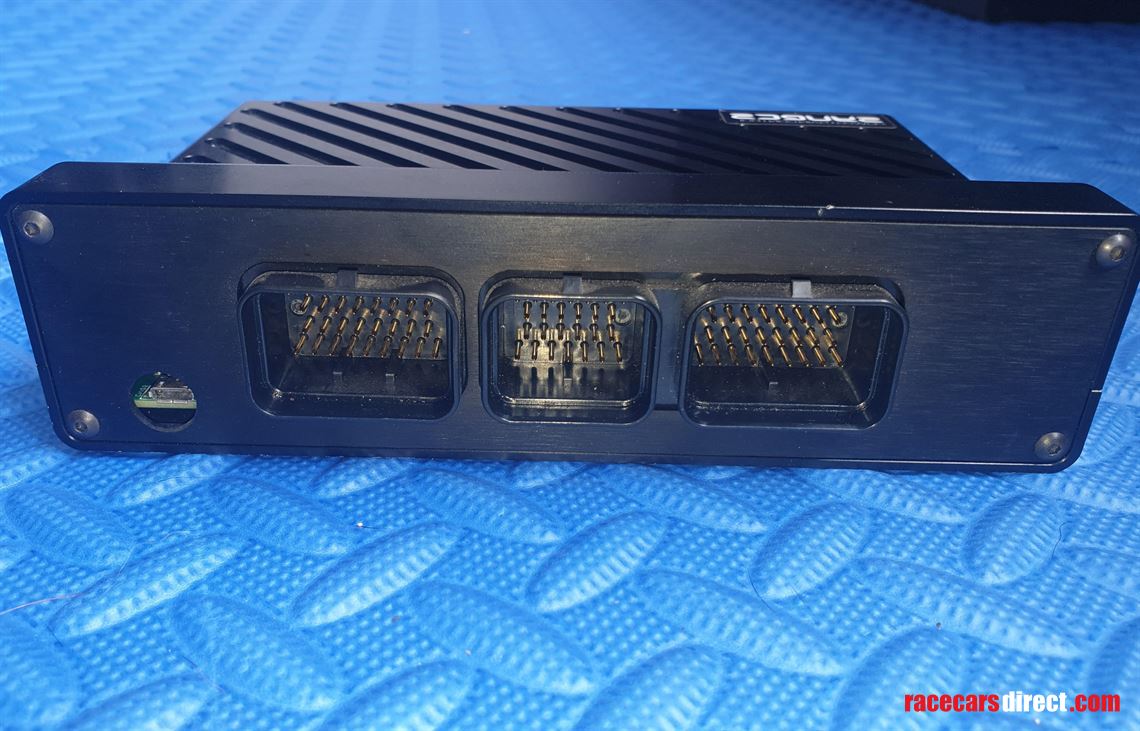

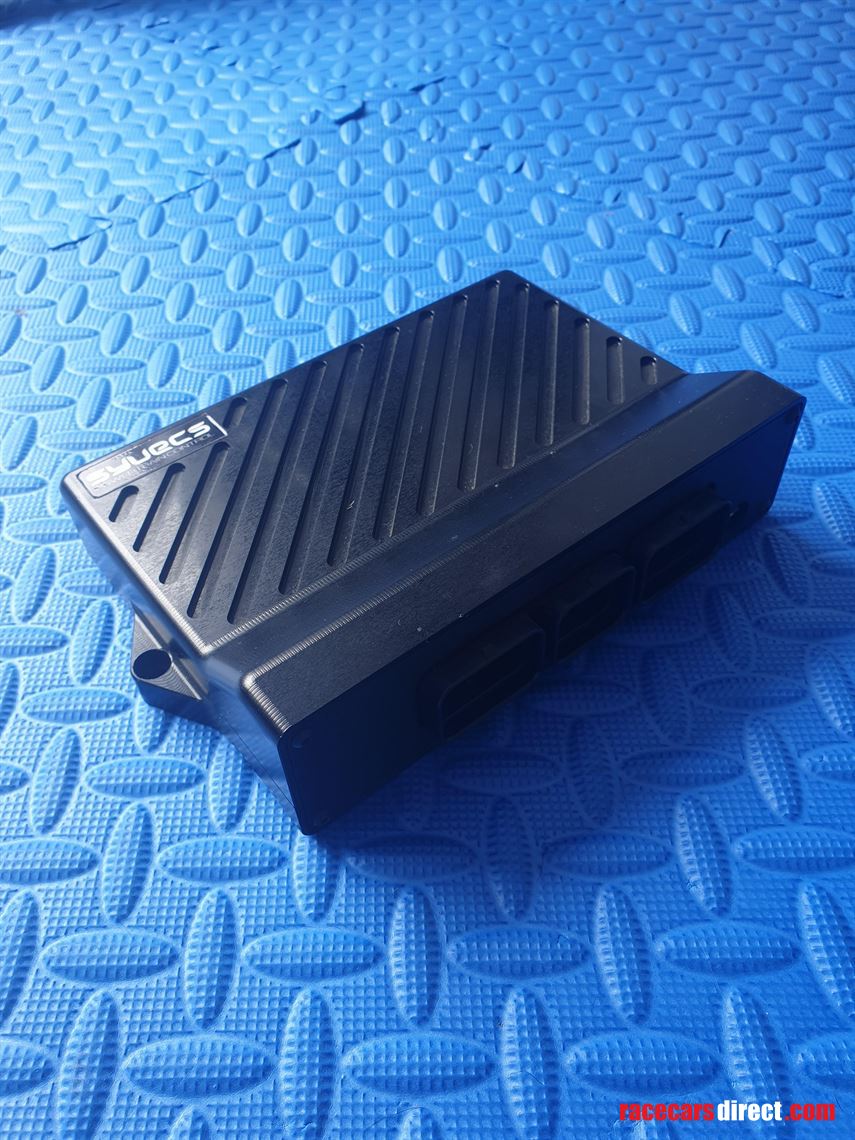

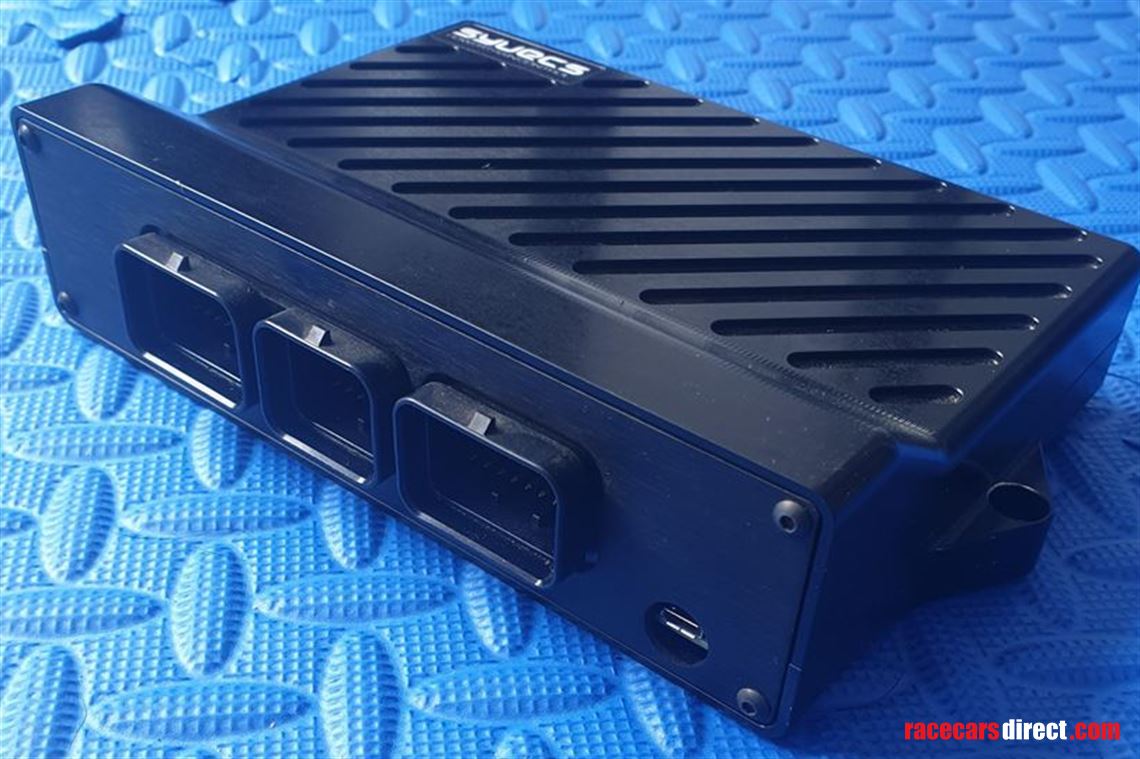

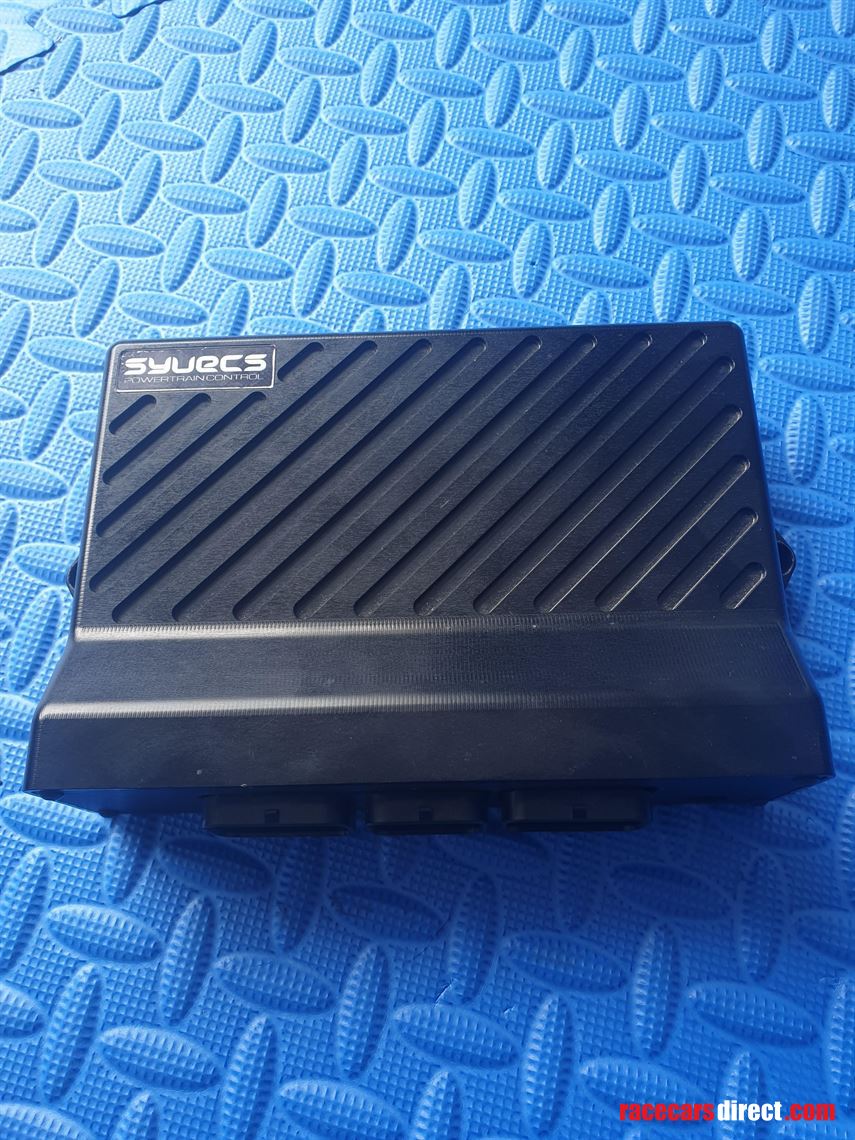

Brand new Syvecs S6Plus.
Perfect condition aside from some very light scratches on the back of the case where it was trial fitted.

Currently has a base map for an E46 M3, but is very easily configured using the free SCal software from Syvecs.

Amazing capability with this ECU, everything can be controlled, customised and monitored via the software, which is very easy to learn.

It can be integrated with a huge number of data and display systems for motorsport or with oem equipment.

The following is taken from the Syvecs website:

Inputs

  • 22 x General Purpose Analogue Inputs:
  • 4 x 5V/Bipolar, Sensor/Sync/Speed, Programmable Trigger Voltages
  • 10 x 5V/Thermistor, Sensor/Sync/Speed, Fixed Trigger Voltages
  • 4 x 5V Sensor Input
  • 4 x Thermistor Sensor Input
  • 2 x Lambda Inputs Including:
  •  1 x NTK, Bosch LSU4.2/4.9 or Denso AF Lambda Circuit
  •  1 x Bosch LSU4.2/4.9 or Denso AF Lambda Circuit
  • 2 x K-Type Thermocouple Circuits
  • 2 x Knock Inputs

Outputs

  • 24 x High/Low Side Driver Outputs:
  • 8x Half Bridge Outputs (Max 10 Amps)
  • 16 x Low Side Injection/PWM Outputs (Max 10 Amps)
  • 6 x TTL Ignition Driver Or Direct Coil Drive IGBT (Solder Bridge Settings on Board)

Comms

  • 1 x Can 2.0B
  • 1 x Rs232 Output
  • 1 x Kline Output
  • 100 Mhz Full Duplex Ethernet For Connection To PC For Programming And Data Download
  • 1MB Battery Backed Internal Logging Memory, Onboard Laptop Logging and USB Logging to be supported in the near Future for near unlimited logging of certain parameters
  • Dimensions : 185 X 145 X 55 mm



If required I also have a patch loom for an E46 M3 which should allow direct connection to the BMW wiring loom.
