Description:

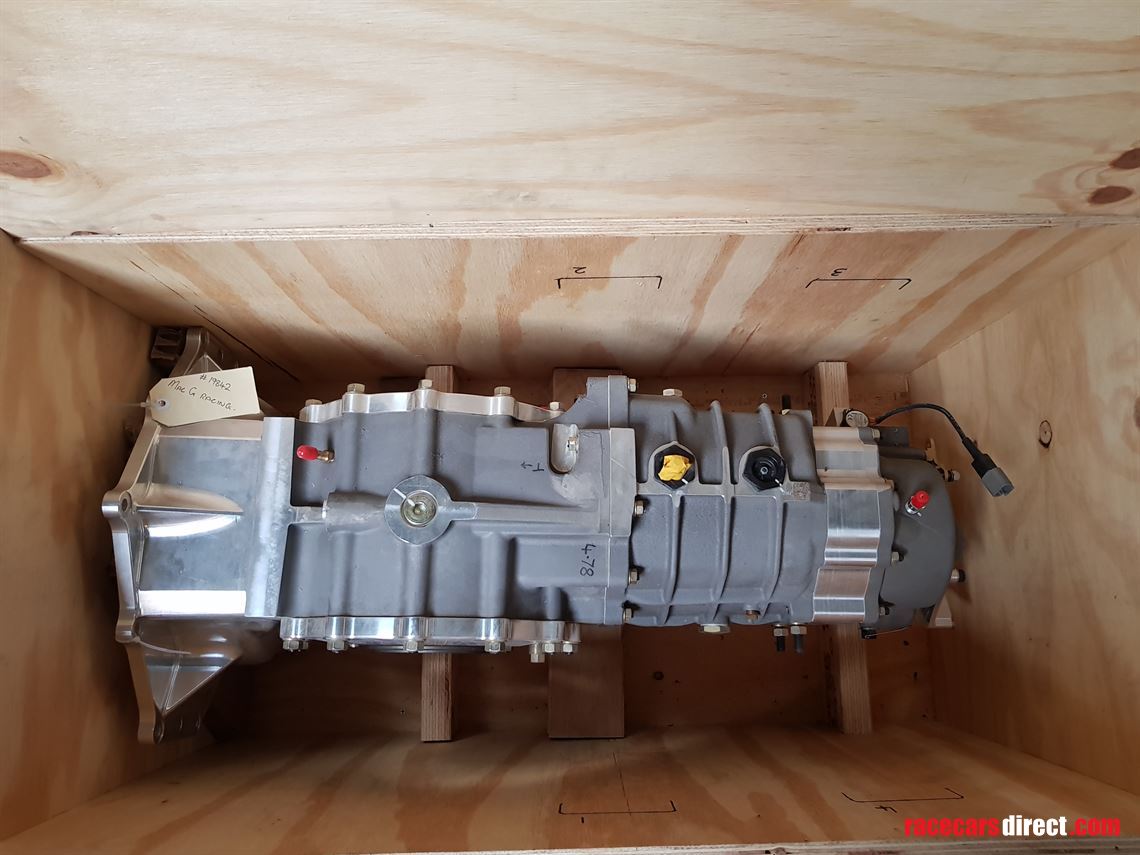

New never run transaxle gearbox.

For High Torque loads and light-mid weight vehicles.

Gear ratio`s

1 gear: 2.67
2: 1.76
3: 1.28
4: 1.00
5: 0.82
6: 0.69
Ring and Pinions 3.70

What are the parts that comes with the gearbox?

1) Gearbox Albins AGB10 x 1 pcs
2) Custom bellhousing to LS block  x 1 pcs
3) Shifter assembly x 1 pcs

--------------------------------------------------

For the road, the obvious choice is the AGB10.
This comes in a number of varieties but the best two choices would be the 6 speed sequential.

The AGB range uses helical cut gears so is nice and quiet and has a torque rating of 1200Nm+ so you will not run into problems, even on higher output drivetrains. With a standard GM ECU as America Speed would provide you would need to use the clutch for changing gear with the sequential option, but obviously the stick would only move forward and backward, not in an ‘H pattern’.


For High Torque loads and light-mid weight vehicles.

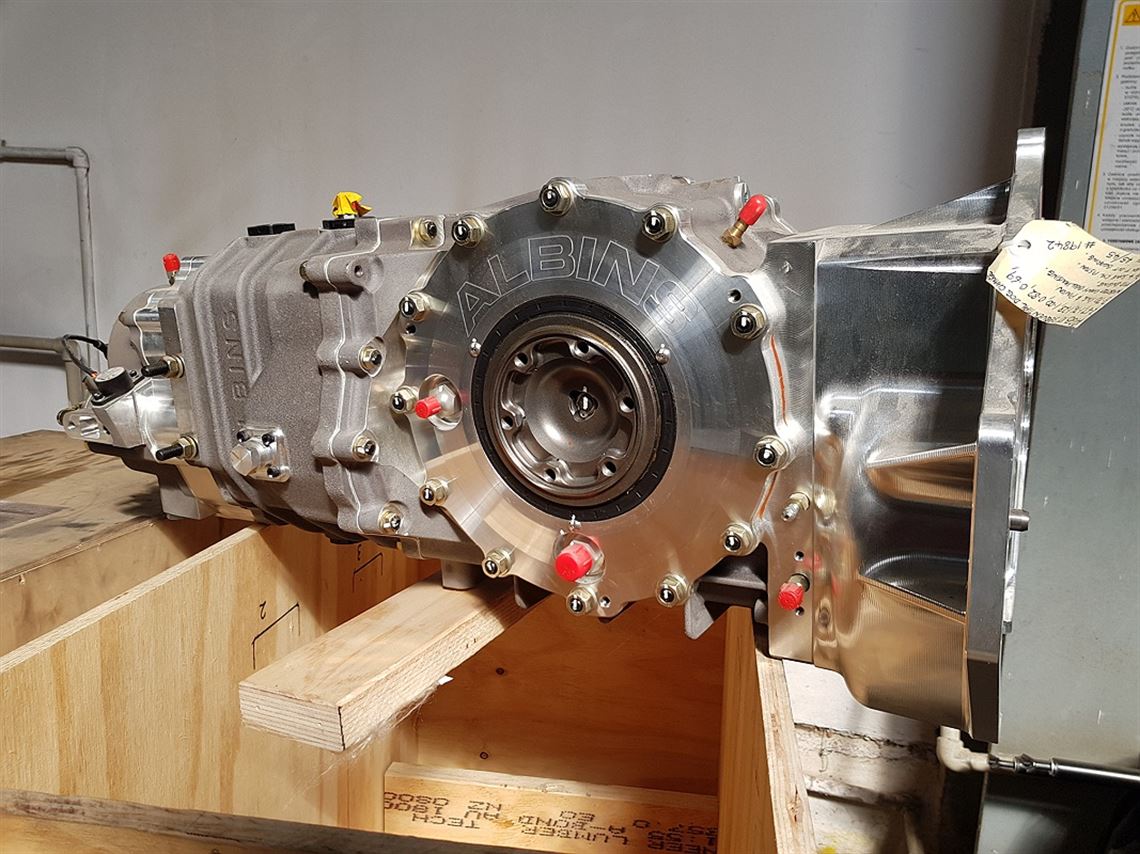

The Albins 10 inch sequential is the perfect transaxle for limited class racecars looking for lightning fast shifts and a strong, compact package. Utilises the same gear stack and shift mechanism as the AGB 11.5 but with a 10” ring and pinion.The smaller ring and pinion, smaller main case, and smaller differential makes this unit 13.6 Kilograms lighter than the full size Albins sequential and much more compact.

Technical details:

• Cast LM25 aluminium housing heat treated to T6 condition and stainless shot blasted
• Fully enclosed bell housing bulkhead for maximim rigidity
• Innovative structural design provides extra ground clearance
• Crownwheel can be mounted either side for mid or rear engine applications
• Torsional 300M input shaft
• Shot peened gears
• Albins Klingelnberg Palloid ring and pinion
• Heavy duty constant mesh reverse gear
• Planetary diff for increased strength and traction
• Variety of Bellhousing and Adaptors to suit popular engines
• Billet Machined side plates for extra strength
• Helical cut drive gears for maximum strength
• Wide selection of final drive gear ratios available
• Hydraulic slave cylinder included, flat or convex throwout bearings available



http://www.albinsgear.com.au/assets/AGB_Binder_Web.pdf

Perfect working condition and clean.

Information on shipping: Worldwide with shipping company (DHL, UPS, DPD)

Let me know if you have any questions about any details or price : motoparts@arrinera.com

This gearbox we bought directly from MacgRacing.co.uk
