1971 Ford Escort Mexico (rep) Classic Race Car - SOLD
This is now SOLD. Search for similar items.
Description:

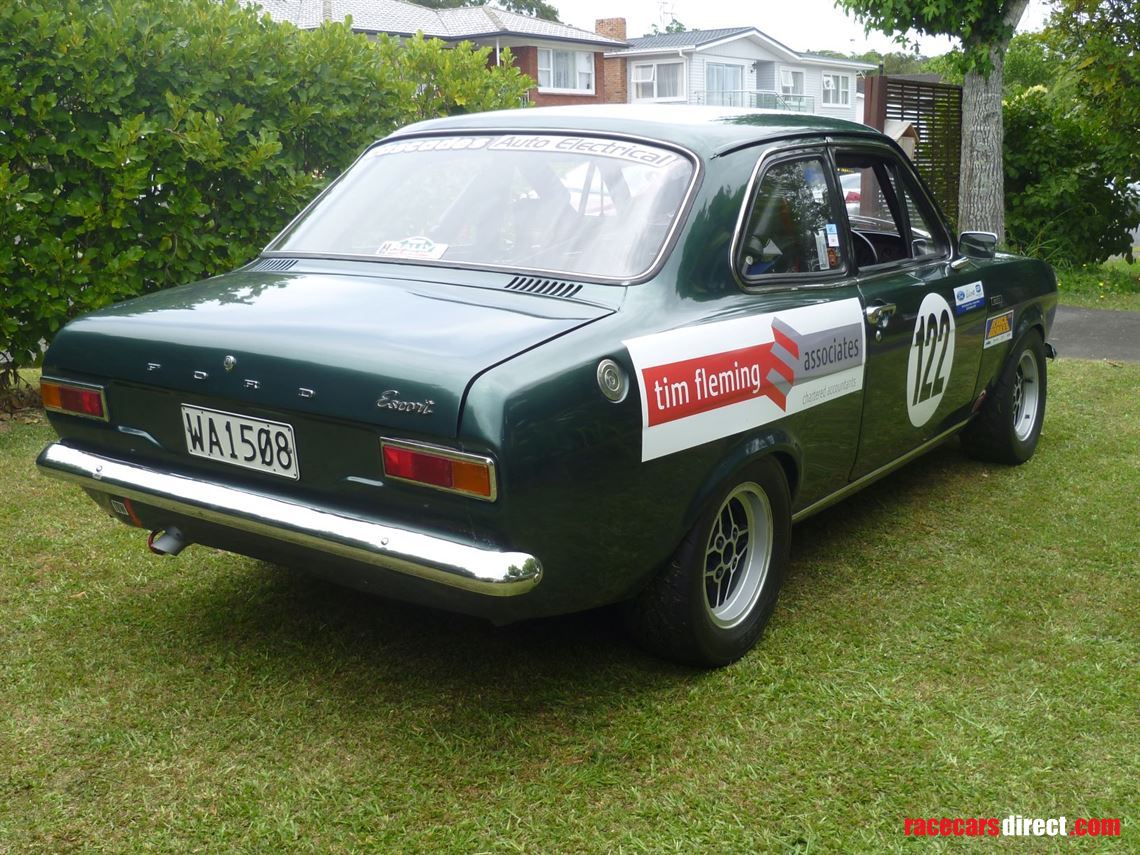

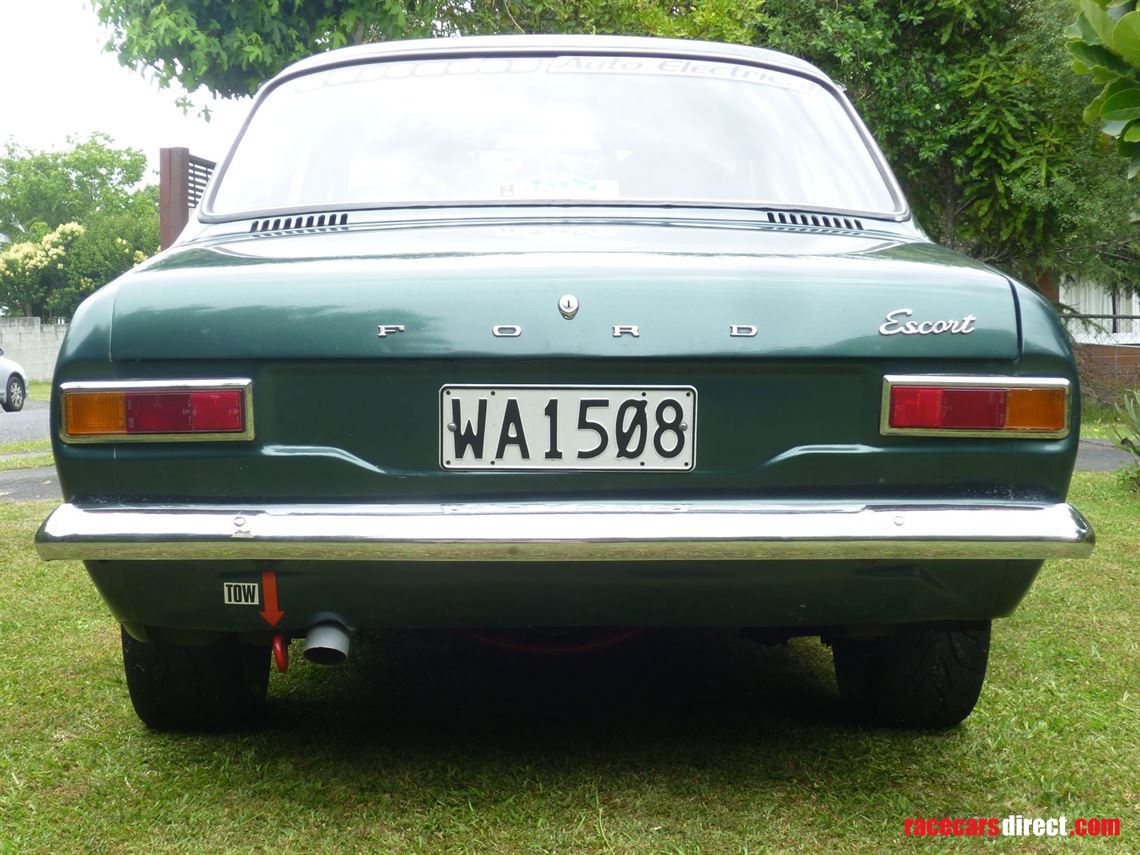

1971 Ford Escort Mexico (rep) Classic Race Car - # 122
Well developed and very reliable. Very versatile – suitable for, circuit racing, tarmac rally, tarmac hillclimbs e.t.c Predominantly used for circuit racing by current owner of 21 years.

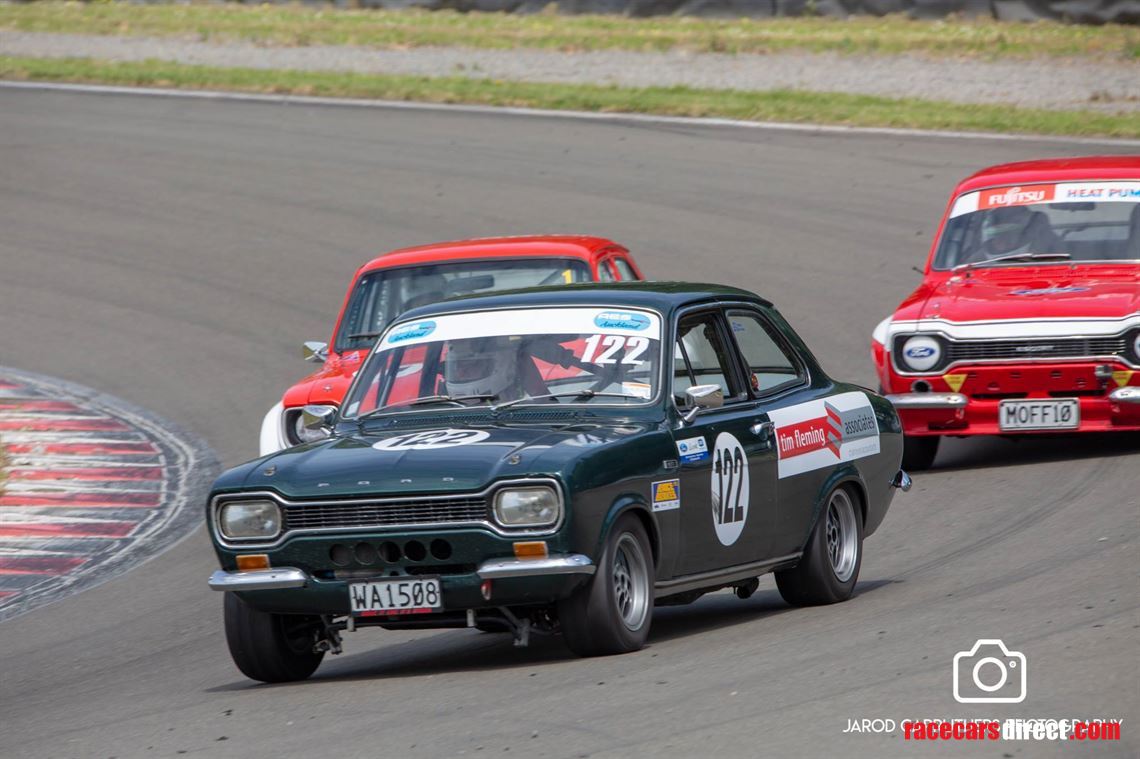

Has been running in the New Zealand ERC Classic Race Series. NZ logbooks from 2000, results history and event programs from 2008.

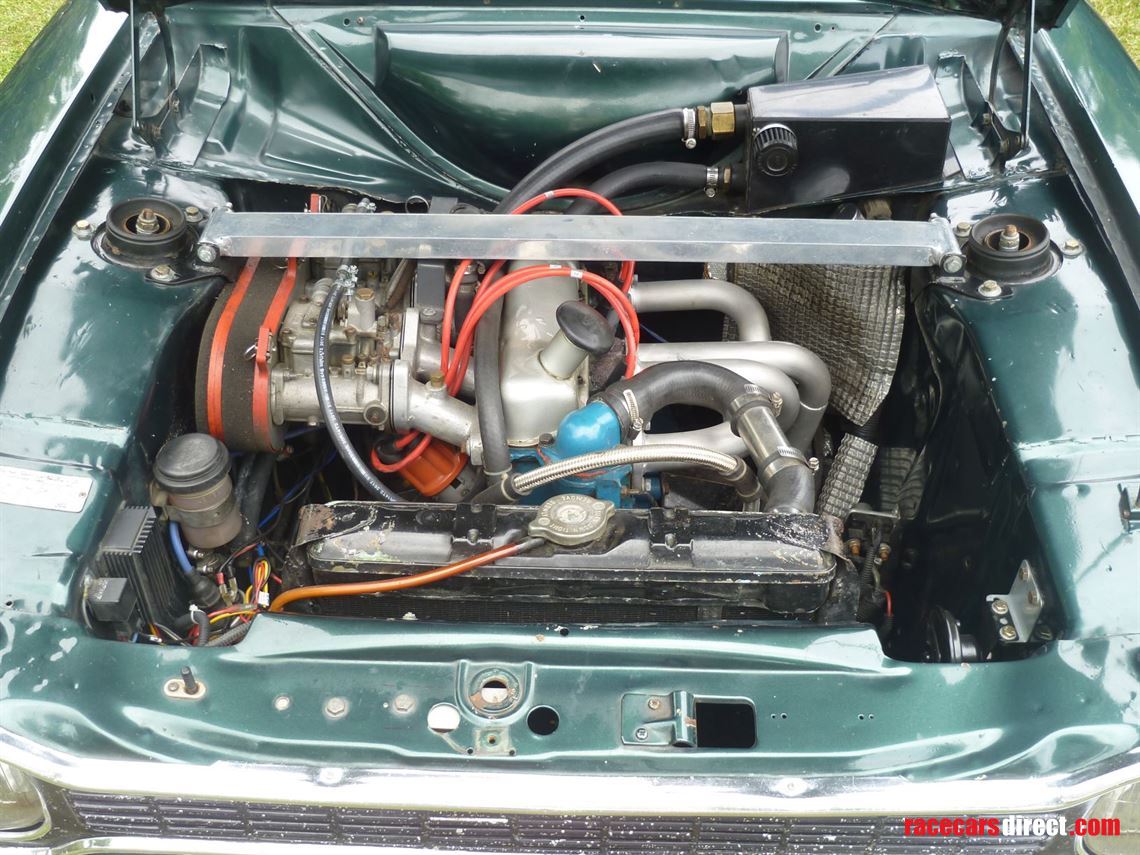

Engine
Ford 1680cc 711m block, full race, running on AvGas with 11.8:1 compression ratio.
Steel crank
SAENZ forged conrods
Forged pistons
Billet Camshaft – custom grind, similar to Kent 254
Solid rocker posts
2 x Dellorto DHLA40 carbs with trumpets and near new filter.
Engine fully balanced including flywheel and clutch
Custom made exhaust manifold with tuned lengths 4-2-1.
Crane electronic ignition
Autometer rev limiter
24 row oil cooler
Mk2 Cortina triple row radiator – NEVER runs hot.
Electric Fan
Gearbox & Clutch
Ford type 9 (Sierra) with Tran-X heavy duty, straight cut, close ratio gearset. Rated for 280hp.
Powertrain twin plate clutch.
Sprocket flywheel, weighs 8 pounds
Diff

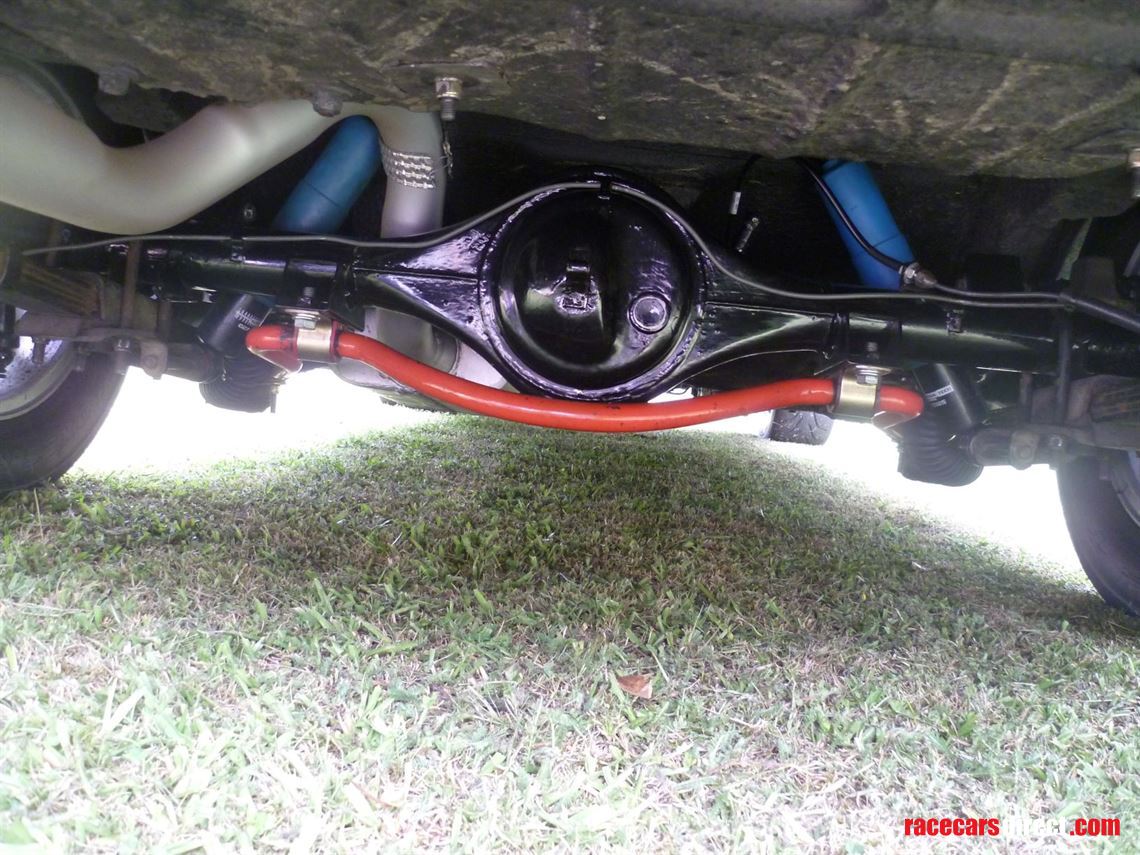

Ford English Axle
Quaife LSD, 4.86 ratio. New CWP 3 meetings ago.
Brakes
Dual line master cylinder, re-sleeved October 2018.
Hydraulic handbrake
Front:
2.8 Capri Vented rotors.
Ford M16 2 pot calipers, rebuilt with new pistons and seals October 2018.
Ferodo DS3000 pads (2 meetings old)
Ducting
Rear:
240mm solid rotors.
Ford Sierra Cosworth / Escort Cosworth single piston sliding calipers. Rebuilt October 2018
Ferodo DS2500 pads (2 meetings old)
Ducting
Suspension

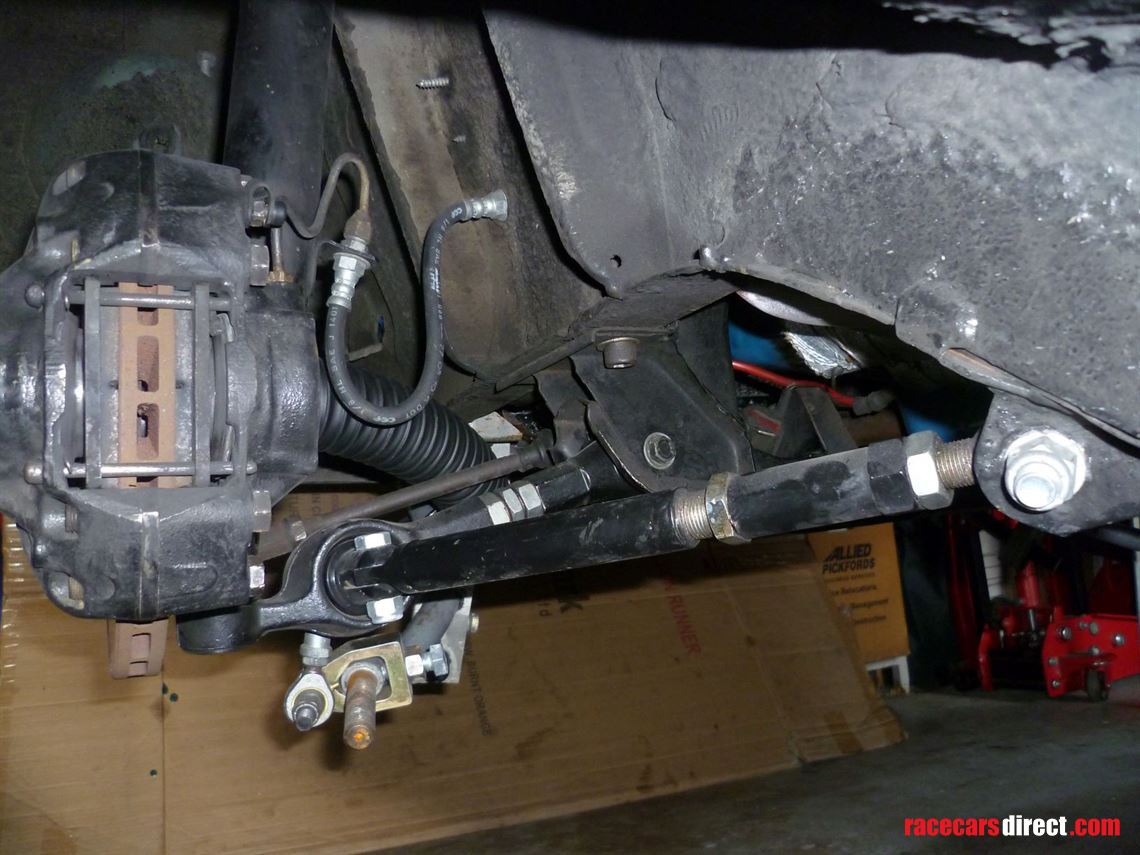

Front:
Mk 1 V6 Capri struts
300lb springs
Koni adjustable shocks
Adjustable TCA’s.
Compression Struts (adjustable)
Sway bars – 4 different size / setup combinations.
Rear:
Leaf springs – extra full length leaf added.
Bilstein shocks
Rear sway bar – 2 different sizes
2 linked / anti tramp rods

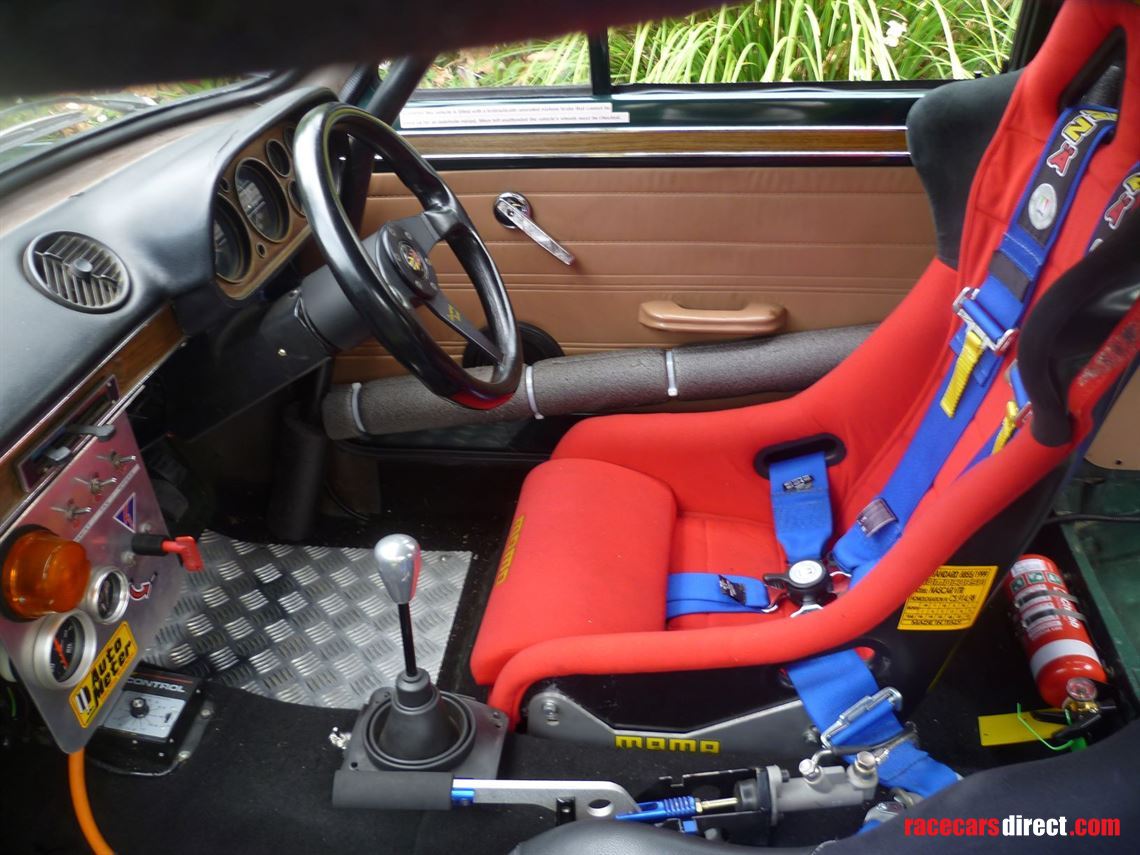

Interior:
1 x Momo + 1 x Autosport seat
Fire extinguisher
3 inch, 6 point FIA harnesses. Valid until 2020

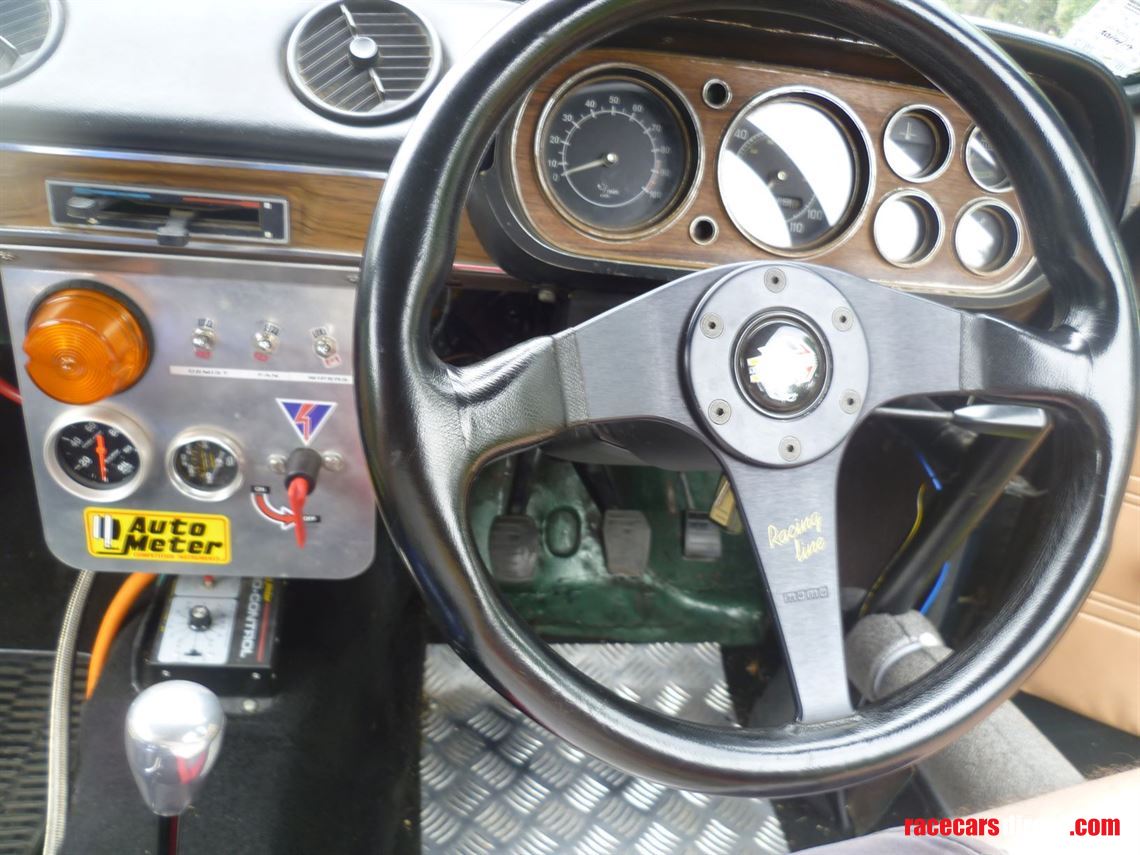

6 dial RS dash
Custom centre console housing Autometer gauges for Oil pressure and oil temperature.
Large oil pressure warning light (50 pound switch).
Other:
Full 8 point rollcage, homologated by Motorsport New Zealand.
New Carter fuel pump, new Jegs fuel filter, new oil pump 3 meetings ago.

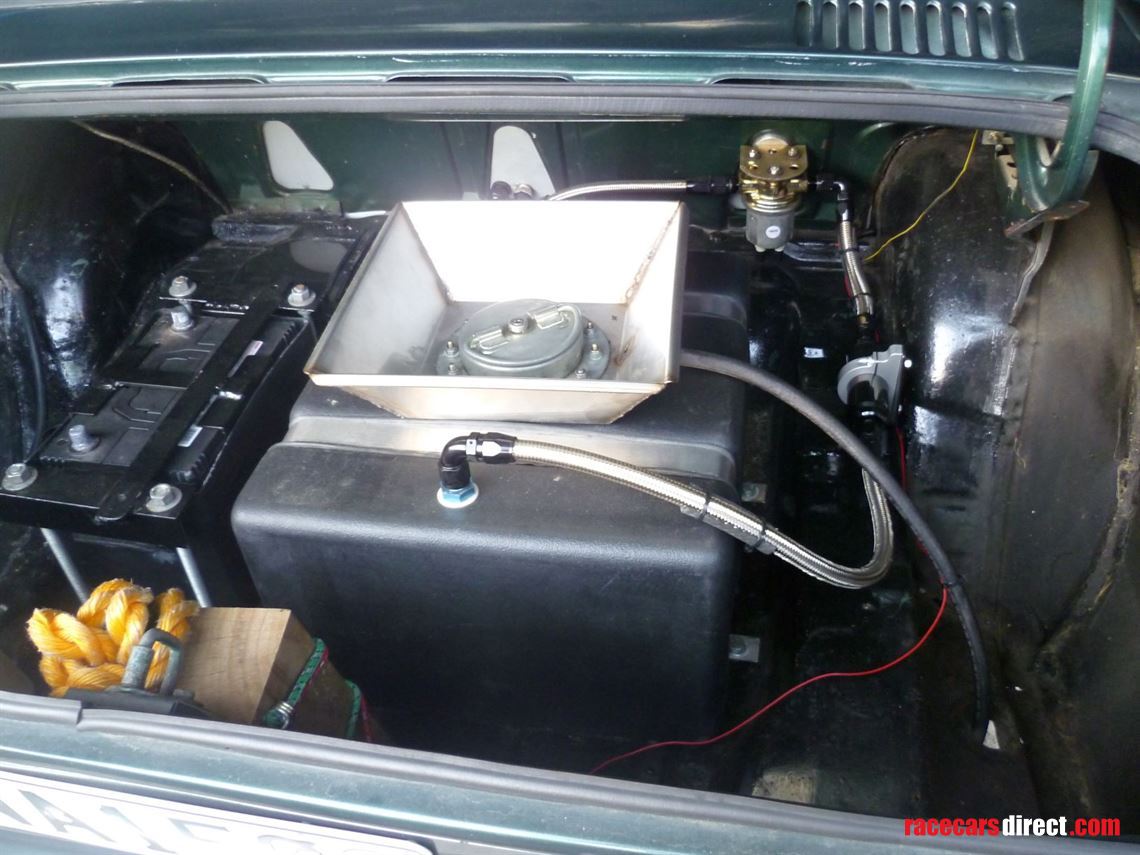

Foam filled fuel cell – capacity of 45 litres
Battery in the boot
Momo steering wheel

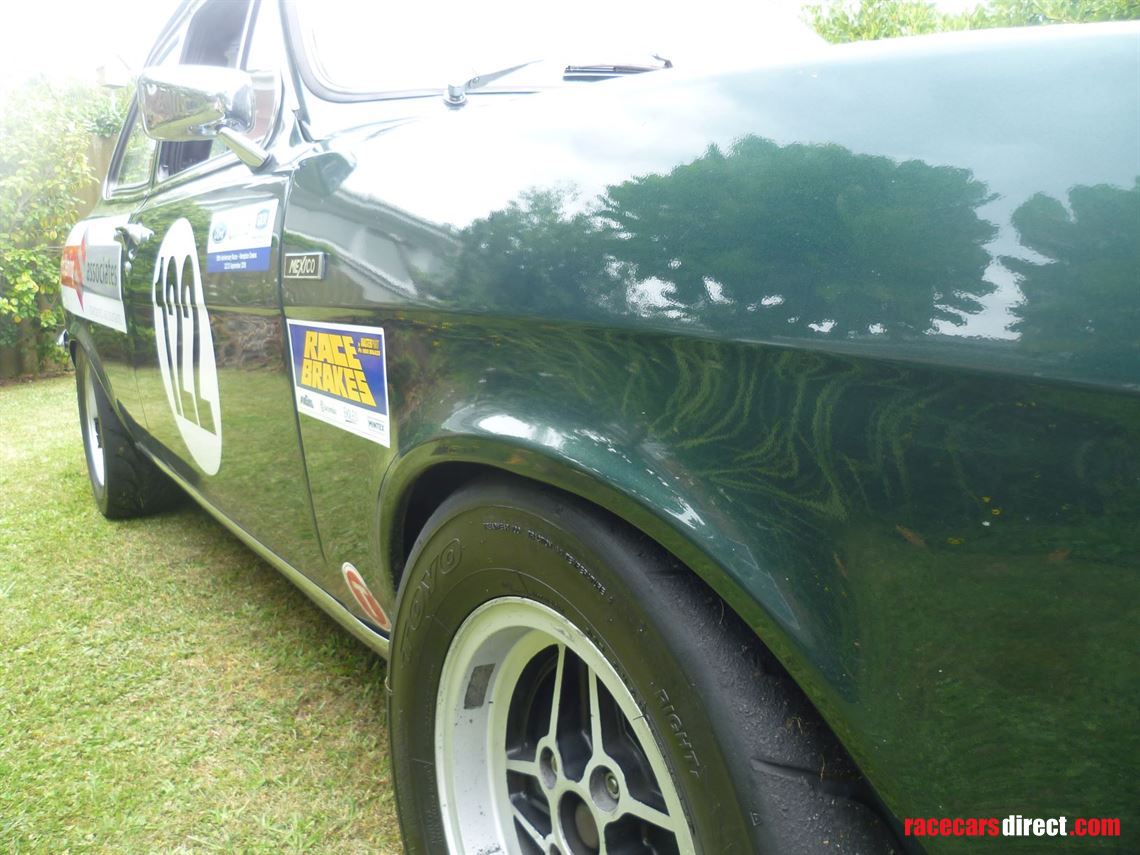

Genuine Ford RS alloys (13 x 6 inch) with Toyo R888 tyres. 1 x spare included (also Ford RS alloy).
Car weighs 920kg wet.
Spares included with the sale:
- 4.44 crownwheel and pinion
- 2 x axles with brand new bearings fitted
- Sway bars / anti roll bars (Front primary’s of 24mm and 20mm and a secondary of 20mm along with brackets to mount to either primary, rear 24mm and 18mm.
- Pair of front rotors – brand new old stock
- Miscellaneous brake pads front and rear, both standard and race compounds.
- Rear Seat squabs
Assistance with shipping from New Zealand is available.
